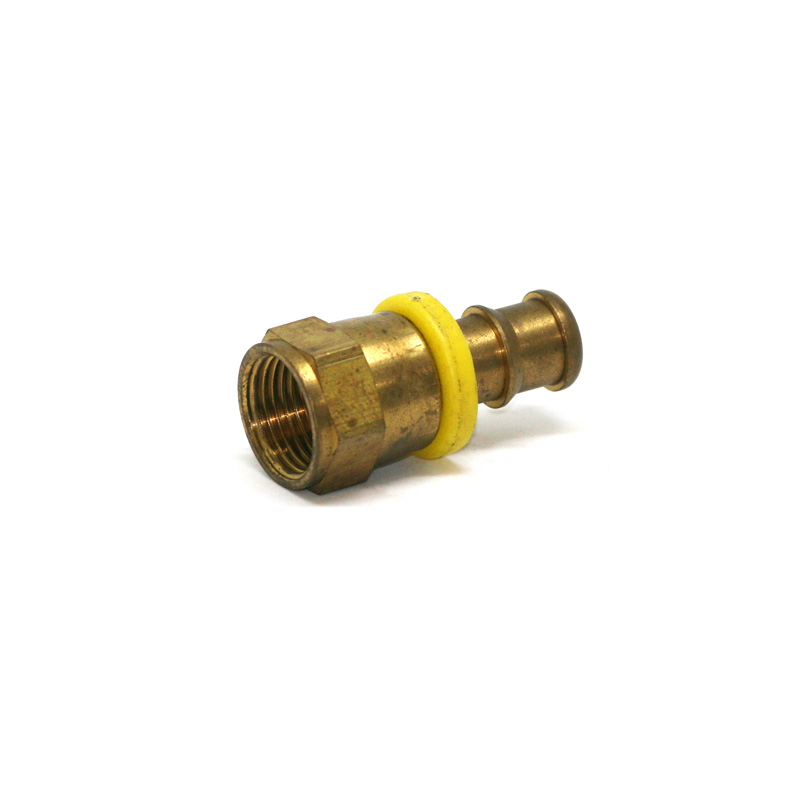

Brass Push-Lock 1/2" Hose x #8 SAE Swivel | SF8X8
$6.06
SKU
SF8X8
Push-lock hose barb - Female JIC/SAE "dual-seat" swivel. HS × FJX/SAE. Allows users to quickly and easily make hose assemblies right on the job site without special tools. Applications include pneumatics, petroleum-base fluids, antifreeze, diesel, and phosphate ester. This "Dual-Seat" Swivel is possible because the 37° JIC Flare and the 45° SAE Flare use the same threads except in the 3/8" and 3/4" sizes.
Specifications
| SKU | SF8X8 |
|---|---|
| Product Type | Push-Lock Hose Barb |
| Media | Hydraulic/Pneumatic |
| Material | Brass |
| Orientation | Straight |
| Pressure & Temperature Rating | Hose Dependent |
| Tube O.D. | 1/2", 12.7 mm |
| 1 - Thread Type | Push-Lock Barb |
| 1 - Size | -08 (1/2") |
| 1 - Thread | 0.500 in O.D. |
| 2 - Thread Type | Female JIC/SAE Swivel |
| 2 - Size | -08 (1/2") |
| 2 - Thread | 3/4 - 16 |
