LRS-Series

Variable Speed Rotary Screw Compressors | LRS-Series

LRS-Series compressors from Champion® feature more than just the latest compressor technology. They contain the cleanest, simplest, most intuitive machine layouts on the market. Equipped with standard TEFC main motors, robust and high performing Eaton inverter drives, Governor™ microprocessor controllers and quiet enclosures, an LRS-Series unit from Champion is the optimal solution when a feature-rich, simple-to-operate compressor is required.

Variable speed compressors from Champion can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure. Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.

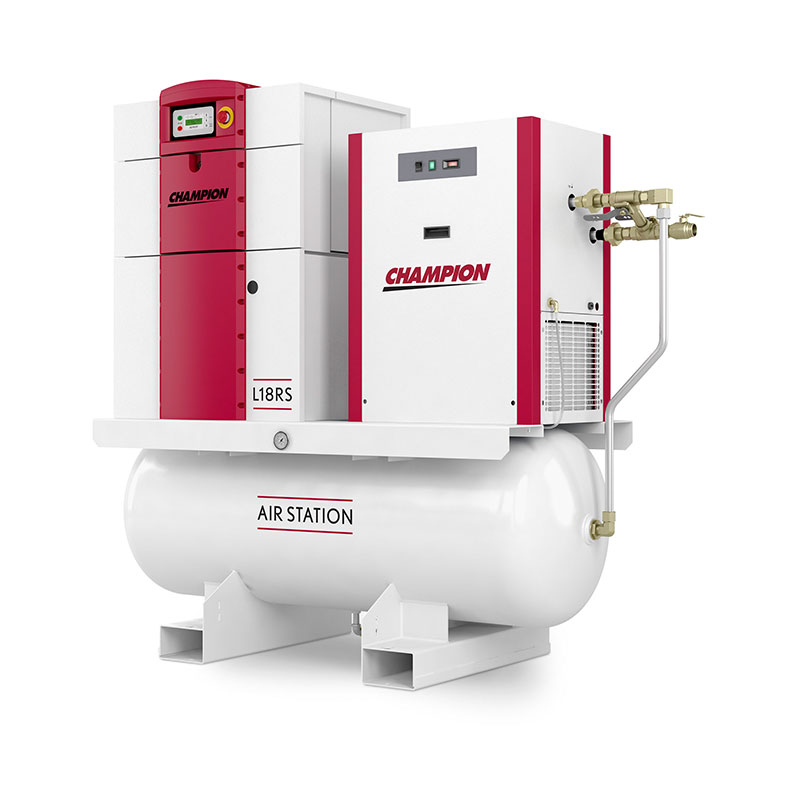

LRS-Series compressors are available in base mount or AirStation™ configurations. The plug-and-play AirStation™ configuration is an LRS-Series compressor mounted on a horizontal receiver tank with or without a refrigerated air dryer. Featuring standard high-end and optional components such as a three-way bypass valve, stainless steel piping, integrated fork lift slots and an automatic tank drain, the LRS-Series AirStation™ is the ideal solution for a compressed air system that requires minimal installation time and cost.

LRS-Series Features & Benefits

  • 10 hp to 40 hp
  • Belt Drive (L07RS–L22RS) and Direct-Gear Drive (L23RS–L29RS)
  • CRN and ASME rated aftercooler
  • TEFC main motor
  • Base Station or AirStation™ configuration on most models
    - 80, 120, or 240 gallon receiver
    - Optional dryer
  • Pilot™ (L07–L22) and Governor™ (L23–L29) Microprocessor Controllers
  • 100 psi, 125 psi or 190 psi Options
  • Low Sound Levels
  • Flow rates:
    - 42.9–190.9 ACFM @ 110 psi
    - 37.6–159.0 ACFM @ 130 psi
    - 27.9–134.9 ACFM @ 190 psi

Champion LRS-Series L29RS

L07RS–L29S Rotary Screw Compressor

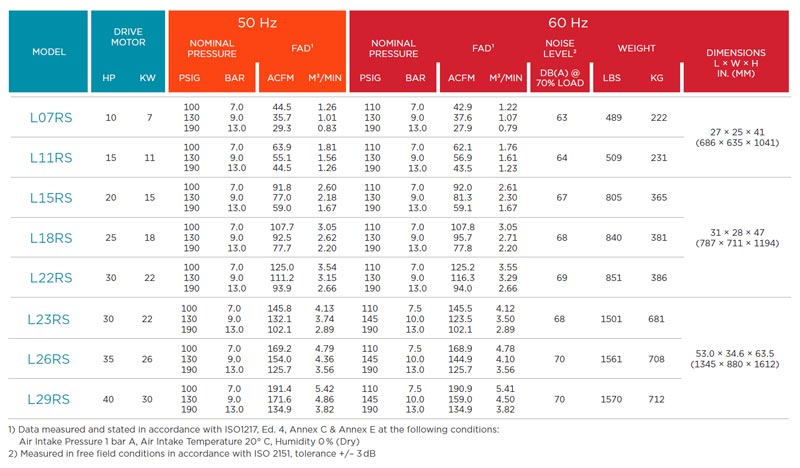

Champion LRS-Series Rotary Screw Compressor

Champion—The Total Package

Since 1919, Champion® sells more than just great products. We sell solutions to the compressed air industry through a complete offering of different compressor technologies, air dryers, lubricants, piping, downstream accessories, and genuine Champion parts. Our focus on providing total system solutions ensures your focus remains on running your business.

Champion LRS-Series Rotary Crew Compressor Brochure

Champion LRS-Series | L07RS–L29RS | 10–40 hp Fixed Speed Rotary Screw Compressor Brochure
