Filtration & Purification
Nuvair filtration and purification products include low pressure (LP) and high pressure (HP) compressor breathing air filters, dyers & coolers, air intake filters, compressor crankcase oil filters, and air/oil separators. The compressed air produced by breathing air systems is hot, wet and dirty. Nuvair filters canisters contain filter elements that remove contaminants like carbon monoxide (CO), water vapor, solids, and oils. With proper equipment operation, testing, and maintenance, you can produce breathing air that meets or exceeds national and international standards.
Nuvair sells agents, carbons, catalysts, cleansers, desiccants, and sorbents in bulk for refilling repackable filter canisters. These active ingredients purify gas/air by removing contaminants like carbon monoxide (CO), moisture, organics, hydrocarbons, oils, and halogenated solvents.
Products are packaged in various quantities to fit your specific operational needs.

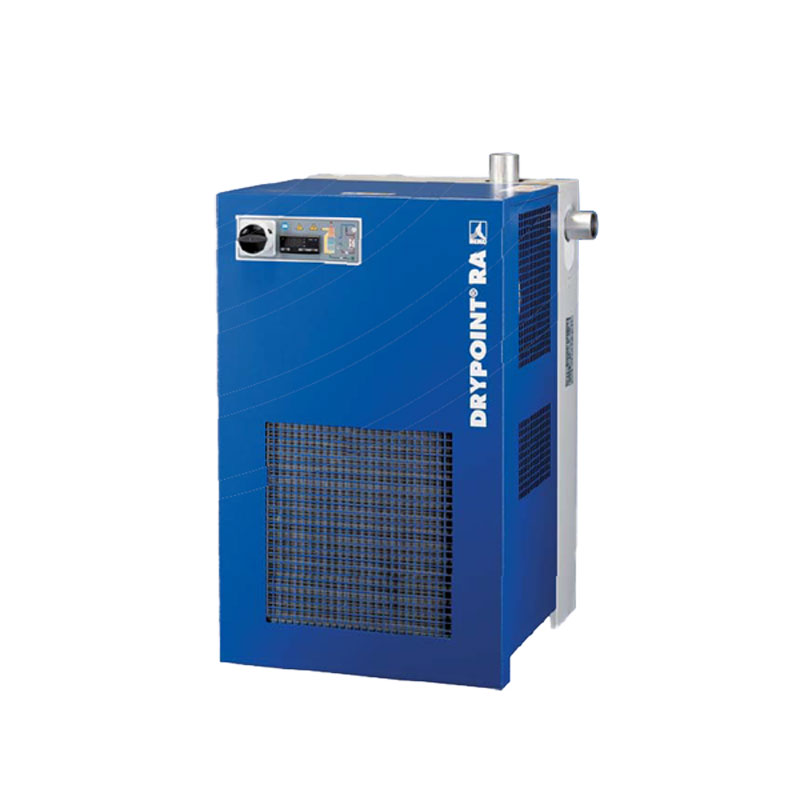

Humidity in compressed air systems causes corrosion, promotes the growth of microorganisms, and allows condensate to emerge at the point of use—all of which are ongoing dangers for the operational flow because of failing pneumatic controls, increased wear and tear, or because of other disturbances in the production process. Filter life is greatly extended by using refrigerated air dryers and other types of coolers to remove excess humidity from compressed gas. Different types of air dryers (radiator, water-cooled, regfrigerated, and desiccant) all have the same goal—cool the air after compression, reduce the dew point of the gas, and remove excess humidity.
Proper high pressure (HP) filtration requires consideration of many conditions such as compressor size and output in cubic feet per minute (CFM) or liters per minute (L/min), ambient temperature and humidity, compressor type and the amount of oil/condensate that will need to be removed by the filters, required filter life and finally, and desired purity of the gas. Nuvair can size your filtration system to meet any quality standard using our 15-, 25- or 35-inch towers. Larger systems can offer longer filter life, better gas quality, and a cost savings on the filters. This is done by using less expensive filter media for drying and extending the life of the more expensive final filter with active carbon and carbon monoxide (CO) catalyst.

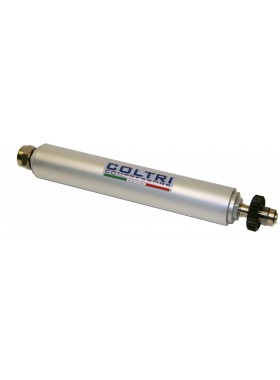

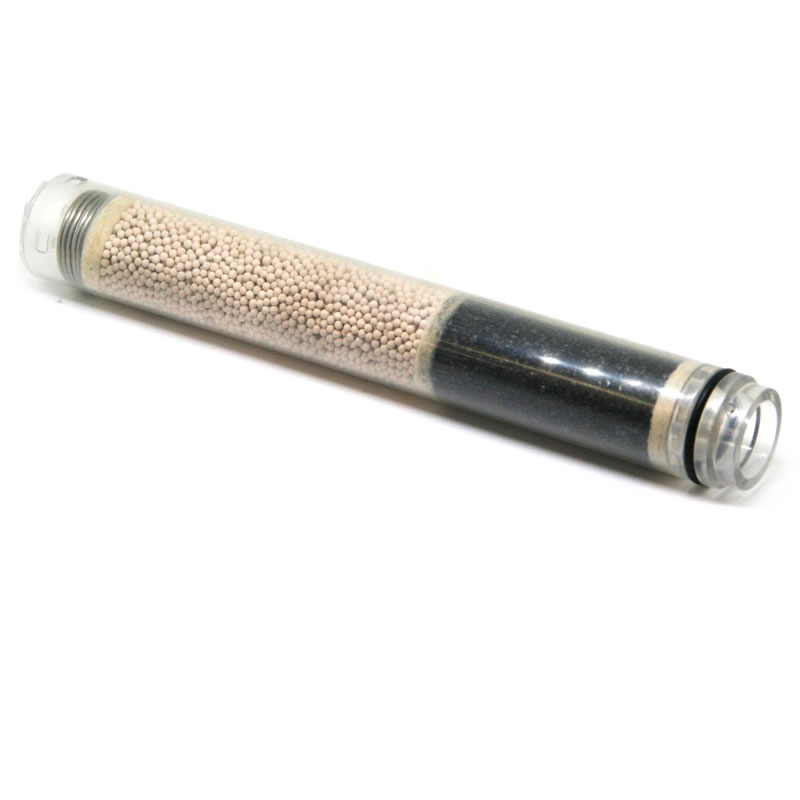

In this category you will find Nuvair's line of HP elements. High pressure (HP) breathing air systems have one or more filter "canisters" (or "towers") containing "elements" (sometimes called "cartridges") that purify gas/air by removing contaminants by filtering out oil, liquid, water, solids, and/or converting carbon monoxide (CO) to carbon dioxide (CO2). HP elements can contain one or more active ingredients like activated carbon, desiccant, molecular sieve, silica gel, or a carbon monoxide catalyst.
Nuvair stocks low pressure (LP) air filter systems commonly used in commercial diving and industrial applications. Whether you are looking for an individual filter canister or a multi-stage LP filtration system, Nuvair can fabricate a system to meet your operational needs. Order individual systems online or contact us to customize a filter package.
Here you will find Nuvair's line of LP elements. Low pressure (LP) air systems can be equipped with one or more filter canisters containing "elements" (sometimes called "cartridges") that filter air by removing contaminants like water, oil, hydrocarbon vapors, and solids. Depending on the level of filtration used, the compressed air produced can be breathed or used in industrial applications.

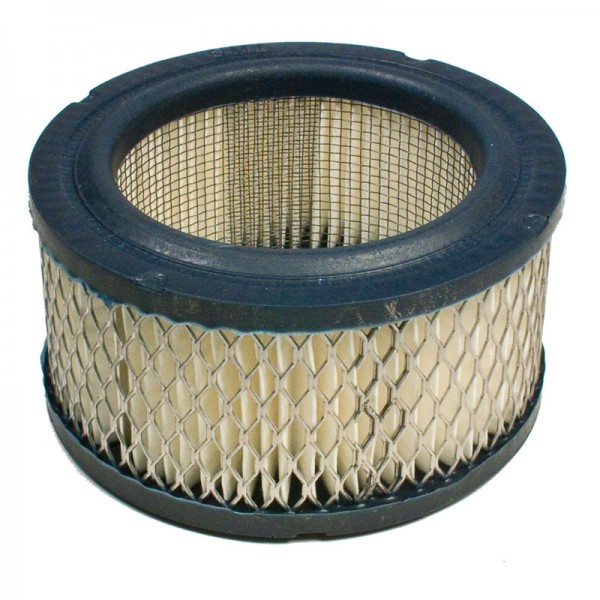

Nuvair stocks air intake, fuel, crankcase oil, and air/oil separation filters for all the rotary screw compressors we service and sell.
Items 1-8 of 248
