Packages
Available in a variety of sizes for any type of operation, we package compressors, fill panels, and air storage into a turnkey system for most industries including:
- Dive shops
- Paintball professionals
- Fire & Safety
- Government, and
- Military
PAINTBALL PACKAGES can be seen below on this page. If you looking for dive shop compressor packages, please click here.

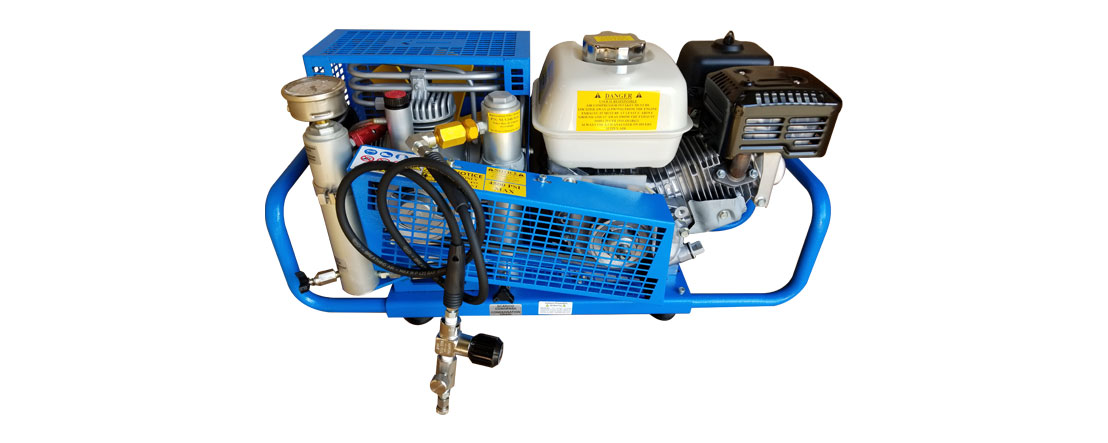

PAINTBALL PACKAGE 1
Gas (PK1G) or Electric (PK1E & PK1E3)
Starting at $3,717
Description
Package #1 is made for individual users and small paintball shops where tanks are filled one at a time. The compressor comes with a rigid portable frame and a on/off fill valve. The line pressure is released with a manual bleed. Available in electric (single- or three-phase; 50 or 60 Hz) and gas powered models. Charging rate of 3.4–4.2 SCFM (96–119 L/min).
Includes
- Nuvair/Coltri MCH6 Compact Compressor
- Paintball fill whip and valve
Options
- Scuba fill yoke
- Automatic drains (for electric models)
- Pressure switch (auto shutdown)
- Hour meter
Specifications
| SKU | PK1E | PK1E3 | PK1G |
|---|---|---|---|
| Fill Time* | ~23 minutes | ~19 minutes | ~19 minutes |
| Charging Rate* | 3.4 SCFM (96 L/min) | 4.2 SCFM (119 L/min) | 4.2 SCFM (119 L/min) |
| CFM FAD | 2.8 CFM (80 L/min) | 3.5 CFM (100 L/min) | 3.5 CFM (100 L/min) |
| Power | Single-phase electric | Three-phase electric | Honda gas |
| 115 V / E1 / 60 Hz** | 28 A | N/A | N/A |
| 208-230 V / E1 /60 Hz** | 14 A | 19 A | N/A |
| 208-230 V / E3 / 60 Hz** | N/A | 11 A | N/A |
| Engine Power | 3 hp (2.2 kW) | 4 hp (3 kW) | 5.5 hp (4.1 kW) |
| Maximum Operating Pressure | 4500 psi (310 bar) | 4500 psi (310 bar) | 4500 psi (310 bar) |
| RPM | 2240 | 2800 | 2800 |
| Number of Stages | 4 | 4 | 4 |
| Condensate Drain | Manual | Manual | Manual |
| Sound Level @ 3 meters | 82 dB | 83 dB | 87 dB |
| Dimensions (L x W x H) |
14.5 x 29 x 19 in (37 x 74 x 48 cm) |
14.5 x 29 x 19 in (37 x 74 x 48 cm) |
14.5 x 29 x 19 in (37 x 74 x 48 cm) |
| Weight | 126 lb (57 kg) | 125 lb (57 kg) | 121 lb (55 kg) |
| Number of Fill Hoses | 1 | 1 | 1 |
| Lubrication | Splash lubrication, capacity 11 oz | ||
*Based on 80 cu ft cylinder from 500 to 3000 psi.
**For information on 50 Hz models, contact your sales representative.
The MCH6 is designed for filling Paintball, SCUBA or SCBA tanks one at a time. The compressors are not engineered or manufactured for continuous duty filling of storage tanks or cascade systems of any kind.

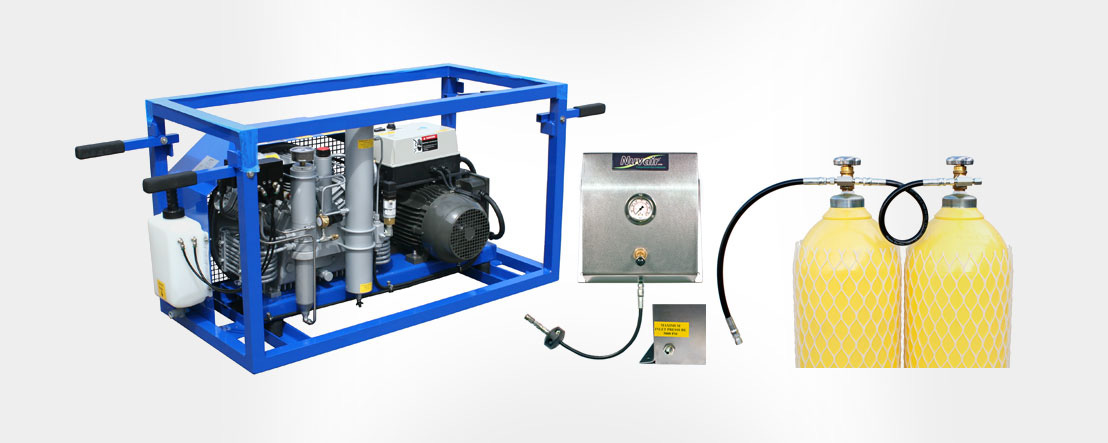

PAINTBALL PACKAGE 2
Electric (PK2E) or Gas (PK2G)
Starting at $8,820
Description
Package #2 is great for small to medium size paintball fields. The Nuvair Mini Tech MCH13 gas or electric compressor can fill two or more storage tanks while providing ample air to the fill station. An optional pressure regulator can be mounted on the fill station or on the storage tank. Features include an 8.9 SCFM (252 L/min) Mini Tech MCH13 compressor, PN1 Fill Panel, two (2) tanks, two (2) hoses, hardware and installation video.
Includes
- Nuvair/Coltri MCH13 Mini Tech
- PN1 fill panel
- Two (2) storage tanks
- Two (2) hoses
- Hardware and installation video
Specifications
| SKU | PK2G | PK2E |
|---|---|---|
| Compressor | Mini Tech MCH13 Gas | Mini Tech MCH13 Electric 220V / E1-E3 |
| Fill Time | ~11 minutes | ~11 minutes |
| Charging Rate* | 8.4 SCFM (238 L/min) | 8.4 SCFM (238 L/min) |
| CFM FAD* | 7 CFM (200 L/min) | 7 SCFM (200 L/min) |
| RPM | 1250 | 1250 |
| Cylinder Diameter | 88 x 36 x 14 mm | 88 x 36 x 14 mm |
| Max. Op. Pressure | 5000 psi (345 bar) | 5000 psi (345 bar) |
| Number of Stages | 3 | 3 |
| Lubrication | Splash lubrication, capacity 1.8 L | Splash lubrication, capacity 1.8 L |
| Compressor Dimensions (L x W x H) |
22.5 x 44.75 x 25.75 in (56 x 114 x 61 cm) |
22.5 x 44.75 x 25.75 in (56 x 114 x 61 cm) |
| Weight | 320 lb (145 kg) | 320 lb (145 kg) |
| Storage Tanks | 2 | 2 |
| Tank Fittings | 2 | 2 |
| Hoses | 8 ft (2.4 m) and 12 ft (3.6 m) | 8 ft (2.4 m) and 12 ft (3.6 m) |
| Fill Panel | PN1 | PN1 |
| Sound Level @ 3m | 96 dB | 81 dB |
| Power | 8.5 hp (6.3 kw) SKU 8039 | 5 hp (3.7 kW) SKU 8040 Series |
*Based on 80 cu ft cylinder from 500 to 3000 psi.

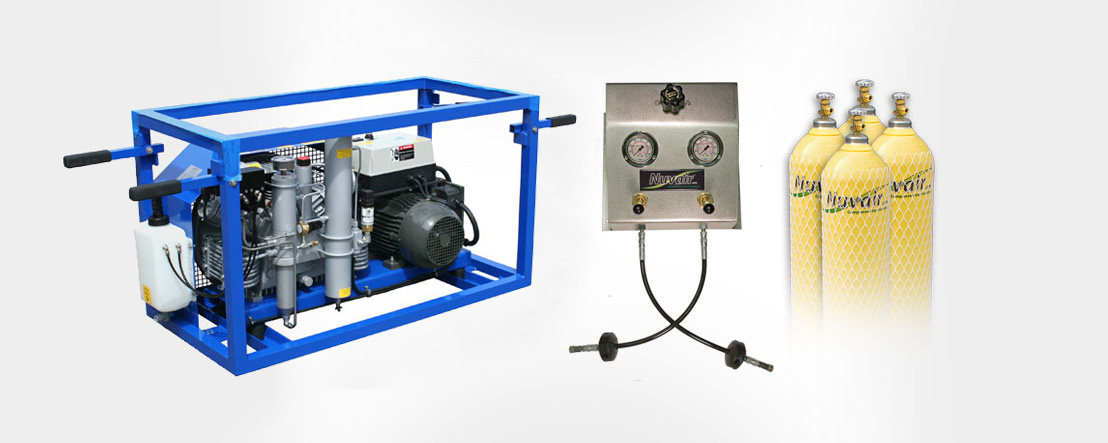

PAINTBALL PACKAGE 3
Gas (PK3G) or Electric (PK3E)
Starting at $10,730
Description
Package #3 is great for large paintball fields. The MCH16 gas or electric compressor can fill one or more storage tanks while providing a considerable volume of air to the fill station. The pressure regulator can be mounted on the fill station or on the storage tanks. The two-man fill station has two toggle actuated fill valves that relieve the line pressure when released. Installation video included.
Includes
- Nuvair/Coltri MCH16 Mini Tech
- PN2 Fill Panel
- Four (4) Storage Tanks
- Hoses
- Hardware and Installation Video
Options
- PK3E: Electric motor start
- PK3G: Electric start
- PK3G: Battery & cables
- Auto drains
- Pressure switch
- Interstage pressure gauges
- PN4 fill station upgrade
Specifications
| SKU | PK3G | PK3E |
|---|---|---|
| Compressor | Mini Tech MCH16 Gas |
Mini Tech MCH16 Electric 220V E1 or E3 |
| Fill Rate* | ~9 minutes | ~9 minutes |
| Charging Rate* | 11.3 SCFM (320 L/min) | 11.3 SCFM (320 L/min) |
| CFM FAD* | 9.4 CFM (266 L/min) | 9.4 CFM (266 L/min) |
| RPM | 1550 | 1550 |
| Cylinder Diameter | 95 x 38 x 14 mm | 95 x 38 x 14 mm |
| Maximum Operating Pressure | 5000 psi (345 bar) | 5000 psi (345 bar) |
| Number of Stages | 3 | 3 |
| Lubrication | Splash lubrication, 1.8 L | Splash lubrication, 1.8 L |
| Compressor Dimensions (L x W x H) |
22.5 x 45.75 x 25.75 in (56 x 114 x 61 cm) |
22.5 x 45.75 x 25.75 in (56 x 114 x 61 cm) |
| Compressor Weight | 312 lb (142 kg) | 320-421 lb (145-191 kg) |
| Storage Tanks with Fittings | 4 | 4 |
| Hoses | 8 ft (2.4 m) and 12 ft (3.6 m) | 8 ft (2.4 m) and 12 ft (3.6 m) |
| Fill Panel | PN2 | PN2 |
| Sound Level @ 3m | 96 dB | 82 dB |
| Engine Power | 11.7 hp (8.7 kW) SKU 8038 |
7.5 hp (5.5 kW) SKU E1 8037.1 | E3 8037.2 |
*Based on 80 cu ft cylinder from 500 to 3000 psi.

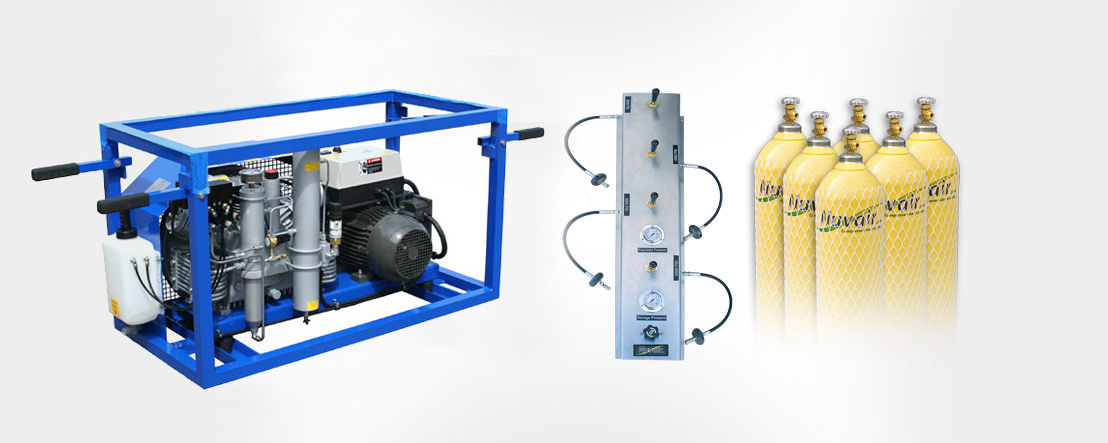

PAINTBALL PACKAGE 4
Gas (PK4G) or Electric (PK4E)
Starting at $11,840
Description
Paintball Package #4 is great for large paintball fields with 100-200 recreational players. PK4 includes a Mini Tech MCH16 gas or electric (220V) powered 11.3 SCFM (320 L/min) compressor, six (6) storage tanks, hardware, installation video, 4 ship filling panel with two fills regulated at 3000 psi (207 bar) and two fills unregulated at 4500 psi (310 bar).
Includes
- Nuvair/Coltri MCH16 Mini Tech
- PN4 Fill Panel
- Six (6) Storage Tanks
- Hoses
- Hardware and Installation Video
Options
- PK4E: Electric Motor Start
- PK4G: Electric Start
- Auto Drains
- Pressure Switch
- Interstage Pressure Gauges
- PK4G: Hour meter
- PK4G: Battery & Cables
- Low Oil Shutdown
Specifications
| SKU | PK4G | PK4E |
|---|---|---|
| Compressor | Mini Tech MCH16 Gas |
Mini Tech MCH16 Electric 220V E1 or E3 |
| Fill Time* | ~9 minutes | ~9 minutes |
| Charging Rate* | 11.3 SCFM (320 L/min) | 11.3 SCFM (320 L/min) |
| CFM FAD** | 9.4 CFM (266 L/min) | 9.4 CFM (266 L/min) |
| Max. Operating Pressure | 5000 psi (345 bar) | 5000 psi (345 bar) |
| Sound Level @ 3m | 96 dB | 82 dB |
| Power | 11.7 hp (8.7 kW) SKU 8038 |
7.5 hp (5.6 kW) SKU E1 8037.1 | E3 8037.2 |
| Storage Tanks | 6 | 6 |
| Tank Fittings | 6 | 6 |
| Hoses | 8 ft (2.4 m) and 12 ft (3.6 m) | 8 ft (2.4 m) and 12 ft (3.6 m) |
| Fill Panel | PN4 | PN4 |
| Compressor Dimensions (L x W x H) |
22.5 x 45.75 x 25.75 in (56 x 114 x 61 cm) |
22.5 x 45.75 x 25.75 in (56 x 114 x 61 cm) |
| Weight | 312 lb (142 kg) | 320-421 lb (145-191 kg) |
*Based on 80 cu ft cylinder from 500 to 3000 psi.

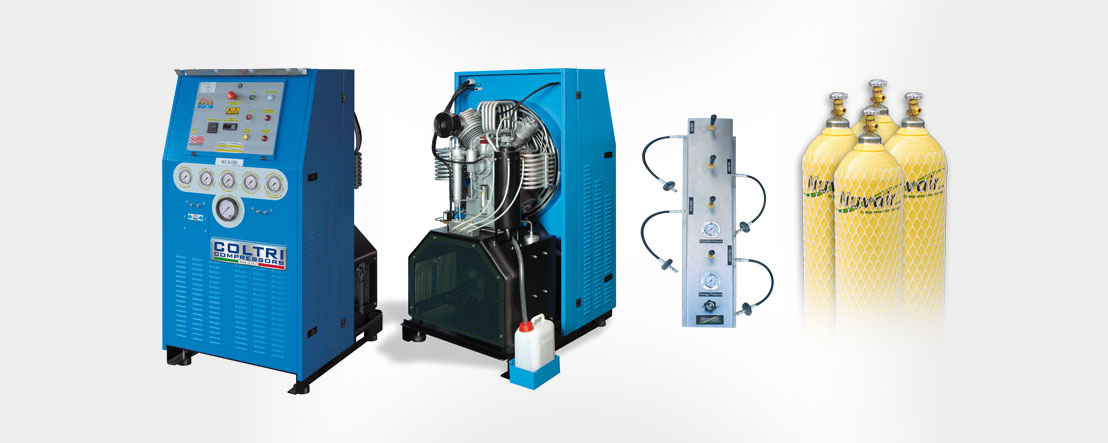

PAINTBALL PACKAGE 5
Electric (PK5E), Diesel (PK5D), or Gas (PK5G)
Starting at $29,583
Description
Paintball Package #5 generates nearly twice the air of Package #4. The standard configuration is an MCH30 electric compressor that produces 20.4 SCFM (577 L/min) at 6000 psi (414 bar), four (4) storage tanks, a four-whip fill station, and 30-feet of hose. If electricity is not an option, upgrade to the powerful MCH36 diesel- or gas-powered compressor that generates up to 27 SCFM (764 L/min).
MCH30 Includes
- 20.4 SCFM (577 L/min) compressor
- Four (4) 6000 psi (414 bar) storage tanks, nut, nipple, & pigtails
- 30 feet (9.1 m) of 6000 psi (414 bar) hose
- Four whip fill station
- Hardware and installation video
MCH30 Features
- Charging rate 20.4 SCFM (577 L/min) compressor
- Working pressure of up to 6000 psi (414 bar)
- Open configuration for easy access and cool running
- Operation panel includes the following:
- Start/stop button
- "Dial-a-Pressure" automatic shutdown
- Condensate test button
- High temperature display
- Automatic shutdown for high temperature and low oil
- Phase control (proper rotation) recognition
- Wrong voltage recognition
- Hour meter
- Stage and oil pressure gauges - Automatic condensate drains and pressure-free start/stop
- Low pressure oil pump, filter and oil level sight gauge
- Large stainless steel interstage cooling tubes with large condensate separators
- Dual filter filtration 60,000 cu ft
- 15 hp (11.1 kW) electric motor
- 208-230V / E3 / 60Hz @ 31A
- 380-415V / E3 / 50Hz @ 18A
- 440-480V / E3 / 60Hz @ 16A
MCH30 Upgrade Options to MCH36 Compressor
- PK5E: MCH36 20 hp (15 Kw) electric motor
- 208-230V / E3 / 60Hz @ 48A
- 380-415V / E3 / 50Hz @ 29A
- 440-480V / E3 / 60Hz @ 25A - PK5D: MCH36D 28.5 hp (21.2 kW) diesel engine
- PK5G: MCH36G 22.1 hp (16.5 kW) gas engine
MCH36 Series Features (Based on Model Selected)
- Charging rate of 22 to 27 SCFM (623 to 764 L/min)
- Working pressure of 5000 and 6000 psi (345 and 414 bar)
- Open configuration for easy access and cool running
- Automatic condensate drains
- Loadless start
- Interstage pressure gauges
- High temperature switch
- Low oil pressure shutdown switch
- Large stainless steel interstage cooling tubes with large condensate separators
- Dual filter filtration 60,000 cu ft
- Visual CO/moisture indicator on fuel-powered models
- Vibration isolation mounts on fuel-powered models
Specifications
| Model | MCH30 (included in package) |
MCH36 (20 hp option) |
MCH36D (diesel option) |
MCH36G (gas option) |
|---|---|---|---|---|
| Fill Time* | ~4 minutes | ~3 minutes | ~3 minutes | ~3.5 minutes |
| Charging Rate* | 20.4 SCFM (577 L/min) | 27 SCFM (764 L/min) | 27 SCFM (764 L/min) | 22 SCFM (623 L/min) |
| CFM FAD* | 17 CFM (481 L/min) | 22.5 CFM (637 L/min) | 22.5 CFM (637 L/min) | 18 CFM (510 L/min) |
| Power | Three-phase electric motor | Kubota diesel engine | Honda gas engine | |
| 230 V / E3 / 60 Hz | 31 A 15 hp (11 kW SKU 8042.2 |
48 A 20 hp (15 kW) SKU 8044.2 |
Diesel 37 hp (28 kW) SKU 8048DK |
Gas 22.1 hp (16.5 kW) SKU 8048-G |
| 400 V / E3 / 50 Hz | 18 A 15 hp (11 kW) SKU 8042.6 |
29 A 20 hp (15 kW) SKU 8044.6 |
Diesel | Gas |
| 460 V / E3 / 60 Hz | 16 amps 15 hp (11 kW) SKU 8042.3 |
25 amps 20 hp (15 kW) SKU 8044.3 |
Diesel | Gas |
| RPM | 1250 | 1420 | 2400 | 1180 |
| Max Operating Pressure | 6000 psi (414 bar) | 6000 psi (414 bar) | 6000 psi (414 bar) |
5000 psi (345 bar) |
| Number of Stages | 4 | 4 | 4 | 4 |
| Number of Fill Hoses | 4 | 4 | 4 | 4 |
| Condensate Drain | Auto Drains | Auto Drains | Auto Drains | Auto Drains |
| Dimensions (L x W x H) |
31 x 39 x 61 in (78 x 99 x 155 cm) |
31 x 39 x 61 in (78 x 99 x 155 cm) |
64 x 44 x 42 in (163 x 112 x 107 cm) |
64 x 32 x 45 in (163 x 81 x 114 cm) |
| Weight | 915 lb (415 kg) | 950 lb (431 kg) | 1600 lb (726 kg) | 750 lb (340 kg) |
*Based on 80 cu ft cylinder from 500 to 3000 psi.
