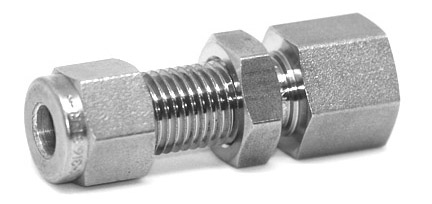

1/4" Tube x 1/8" FNPT Bulkhead | 4BCF2-316
$28.75
Stainless steel Bulkhead Female Connector connects fractional tule to Male NPT thread. All bulkhead fittings come with nuts.
SKU
4BCF2-316
Specifications
| SKU | D Tube O.D. |
T NPT |
d (Min.) |
h* | h1* | H* |
A |
ℓ (mm) |
ℓ1 (mm) |
L (mm) |
L1 (mm) |
Panel Hole Drill Size |
Panel Max. Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4BCF2-316 | 1/4 (6.35mm) | 1/8 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 39.62 | 26.16 | 51.81 | 33.52 | 11.50 | 10.16 |
* Width Across Flat measurement.
