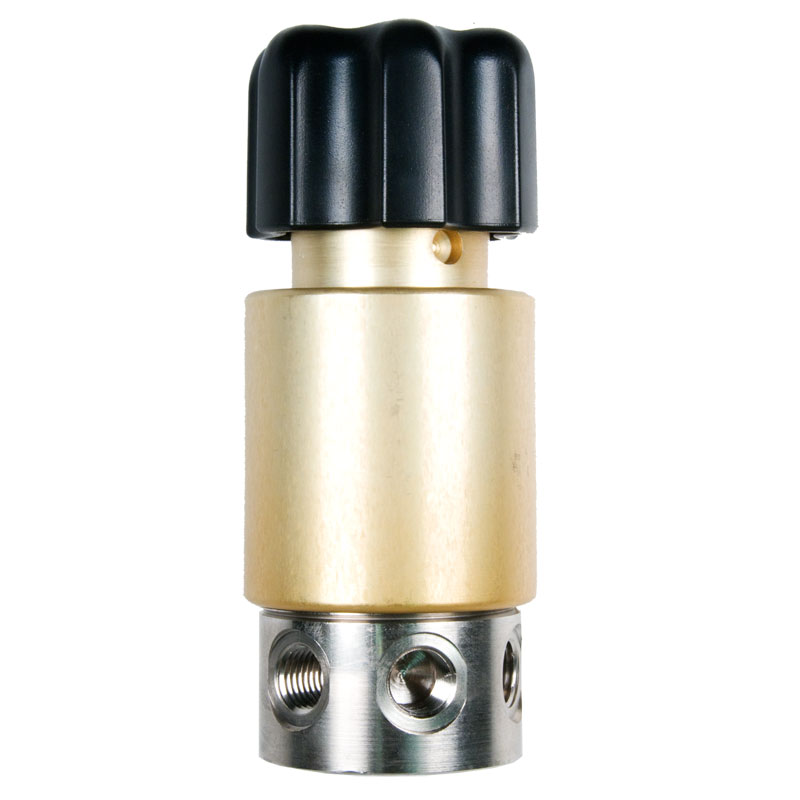

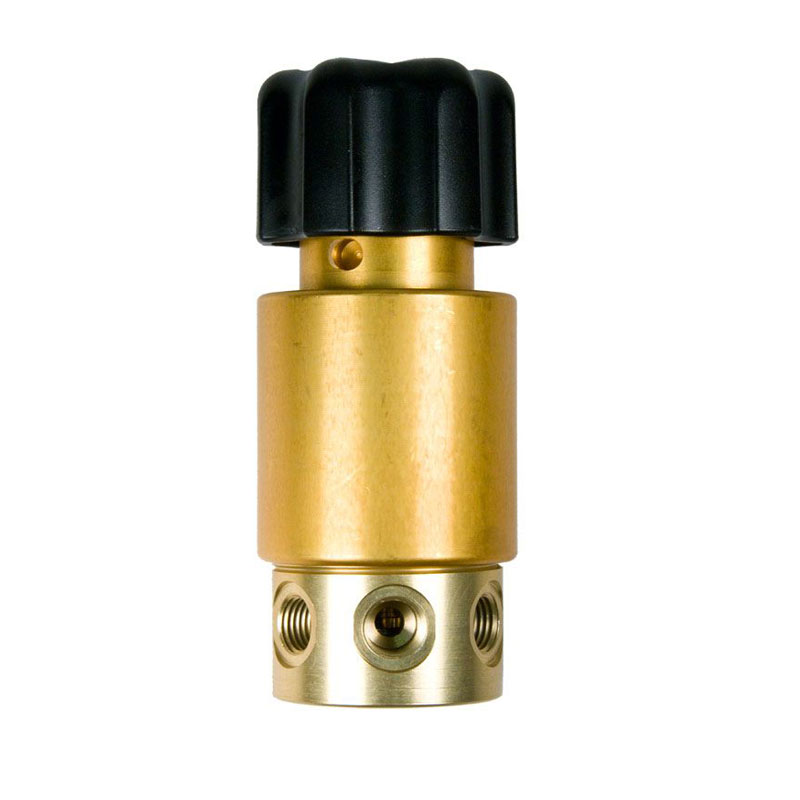

Reducing Regulator 6000 psi In > 50-5000 psi Out Aluminum · Low Temperature
$358.00
SKU
415-5000-L
Aluminum reducing regulator. 1/4" FNPT fittings. Outlet pressure range: 50–5000 psi. Maximum rated pressure: 6000 psi. Specially designed for low temperature service (–60°F | –51°C). The model 415 is a piston type, hand load regulator that uses an unbalanced poppet design for ruggedness and simplicity. There is a small variation of control pressure with changing inlet pressure as noted in the specifications. A 30 micron filter in the poppet cartridge helps prevent damage by contaminants.
Typical Applications
- Component testing
- Air tank fill stations
- Firefighting air systems
- Instrumentation and calibration panels
- Process industry control
- Shipboard and offshore air and gas control
- Aircraft service equipment
- Electronic industry rare gas flow
- Vehicle CNG stations
Specifications
| Type | Reducing Regulator |
| PSI Out | 0–5000 psi |
| Hand Loaded/Operated or Dome/Air Operated | Hand/Spring Loaded |
| Maximum Rated Pressure | 6000 psi |
| Outlet Pressure Range | 50–5000 psi |
| Outlet Pressure Rating | 6000 psi |
| Inlet Port Size | 2 ea 1/4" FNPT (One Gauge, One Inlet) |
| Outlet Port Size | 2 ea 1/4" FNPT (One Gauge, One Outlet) |
| Flow Coefficient (Cv) | 0.06 (equals 0.07 in orifice) |
| Outlet Pressure Variations with Inlet Pressure Variations | 70 psi rise/1000 psi inlet drop |
| Leakage | Bubble tight |
| Weight | 710 g |
| Overall Length | 5.5" |
| Round Diameter | 2.25" |
| Minimum Temperature | –60ºF (–51ºC) |
| Body Materials | Anodized aluminum |
| Internal Materials | Anodized aluminum, Brass, Stainless |
| Seal Materials | Kel-F, Nitrile |
| Special Note | Not oxygen cleaned |
| Accessories | Mounting Ring SKU 657 |

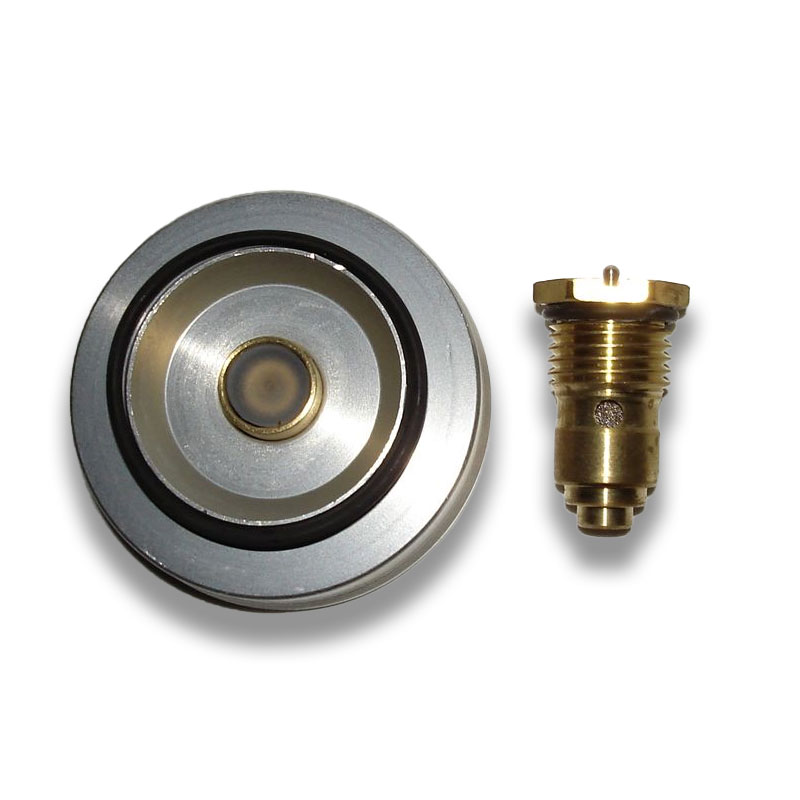

| Repair/Service Kit | 839-5000-L |
