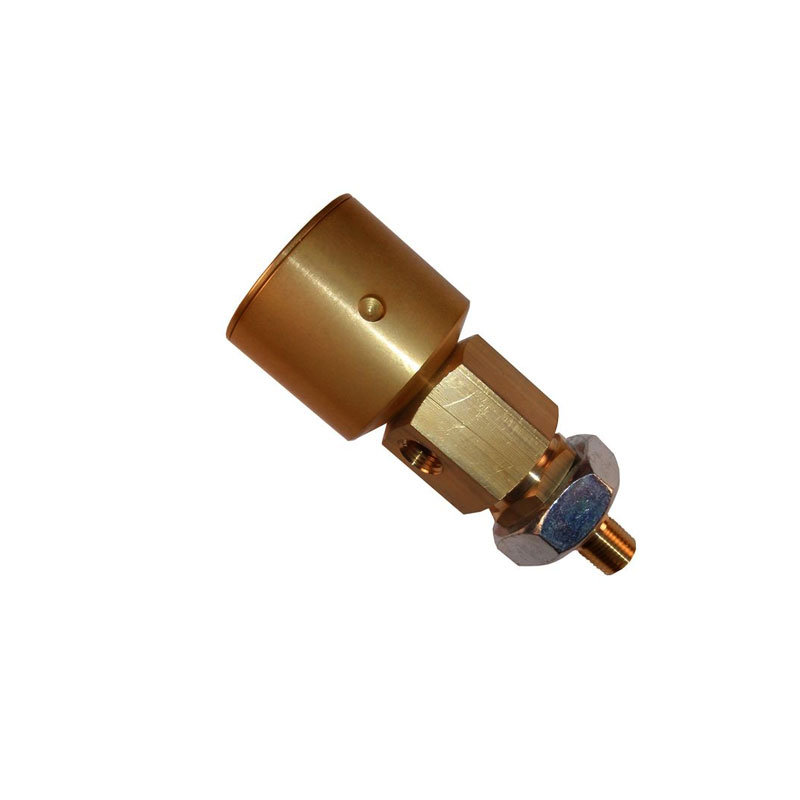

Air Operated Open/Close Valve
$196.00
SKU
816-3
The Aqua Environment 816 valve is an open or shut valve for air or gas lines up to 6000 psi. In the normal position with no control pressure applied, the valve is shut. Providing control pressure to the upper control port opens the valve. One typical application is to open a cylinder charging line only when a protective door is shut. A one inch thread section is provided permitting a variety of ways to mount the valve. This item is not regularly stocked. Please contact Nuvair sales for estimated lead times.
Typical Applications
- Gas supply interlocks such as protective doors on charging stations
- Component testing
- Process industry control
Specifications
| Type | Open/Close Valve |
| Hand Loaded/Operated or Dome/Air Operated | Air Operated |
| Control Port Size | 1/4" FNPT |
| Maximum Control or Dome Pressure | 1200 psi |
| Actuating Pressure | 45 psi at 5000 psi in and 5000 psi out 25 psi at 5000 psi in and 0 psi out |
| Body Material | Anodized aluminum |
| Internal Materials | Anodized aluminum Brass Stainless |
| Seal Materials | Buna-N, Kel-F, Viton |
| Weight | 15 oz (424 g) |
| Overall Length | 9" |
| Round Diameter | 2" |
| Repair Kit | 806-3-16 |
