Swivel Run Tee: Push Tube x Male Pipe
SKU
71PCS Series
Push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.
Specifications
| SKU | 71PCS-4-2 | 71-PCS-4-4 |
|---|---|---|
| Material | Nickel plated brass | Nickel plated brass |
| Seal Material | Nitrile | Nitrile |
| Style | Tube to Pipe | Tube to Pipe |
| Connection 1 Tube O.D. | 1/4 in | 1/4 in |
| Connection 2 Thread Size | 1/8 in | 1/4 in |
| Connection 2 Style | Male pipe | Male pipe |
| C Hex | 7/16 | 9/16 |
| L | 0.85 | 0.85 |
| N | 0.92 | 1.10 |
| Flow Dia. D | 0.156 | 0.156 |
| Applications | Air lines, inert gases, oil lines, vacuum lines | Air lines, inert gases, oil lines, vacuum lines |
| Operating Pressure | 300 psi (20 bar) | 300 (20 bar) |
| Vacuum Pressure Rating | 28 inHg | 28 inHg |
| Minimum Operating Temperature | 0°F (-18°C) | 0°F (-18°C) |
| Maximum Operating Temperature | 200°F (93°C) | 200°F (93°C) |

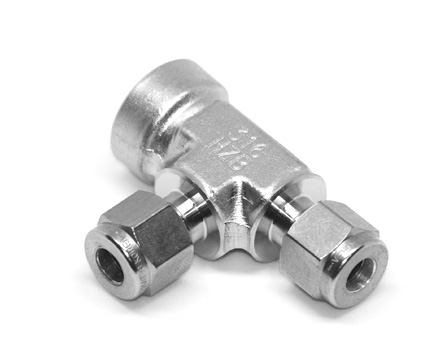

Female Run Tee Series
Starting at $20.70

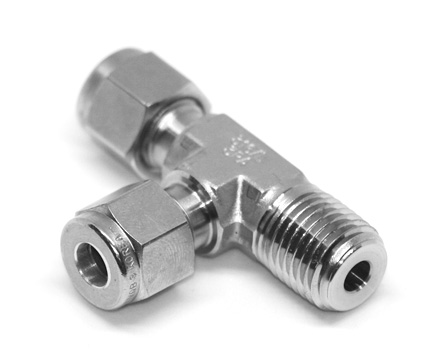

Male Run Tee Tube to Male Stainless Series
