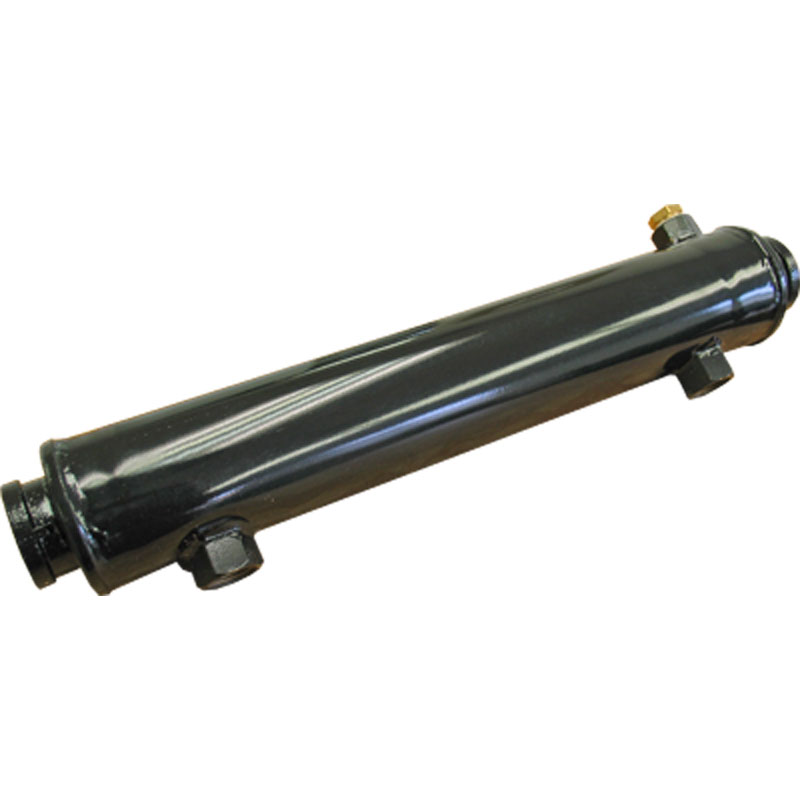

15" Low Pressure Cooler

$1,224.00

The Nuvair C15 heat exchanger is designed for low pressure compressor use. Made of copper and nickel, its 15-inch-long bundle handles 63.5 hp or 2700 BTU/min.

SKU
C15
  • Made of copper and nickel, the Nuvair C15 heat exchanger is rated to handle 63.5 hp or 2700 BTU/min
  • Its 15-inch-long x 3-inch diameter bundle contains 74 1/4-inch copper tubes running lengthwise
  • Two 1-1/4" NPT end fittings for media to be cooled (air, oil, water, etc.) at a flow rate of 32 gal per minute (gpm)
  • Inlet and outlet 3/4" NPT fittings for cooling fluid at a flow rate of 10-20 gpm
  • 1/2" NPT zinc anode port
  • Replacement zinc anode: SKU 5881701
  • Rated for low pressure (175 psi/12 bar) compressor use
