Champion R-Series 9.3HP Diesel Compressor · 80-gal Horizonal Tank

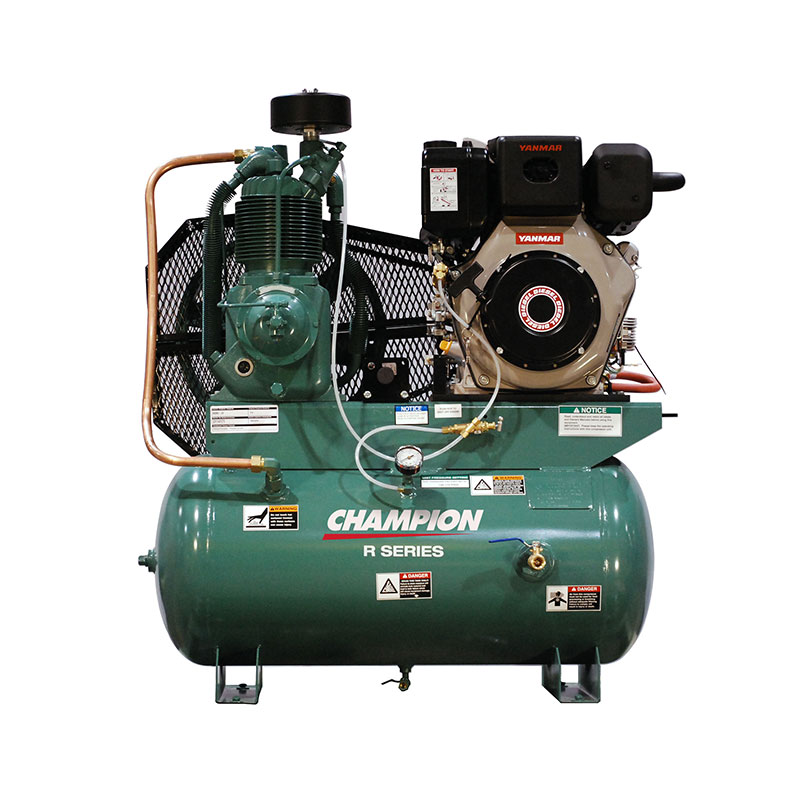

The Champion® R-Series HDR5-8Y is a horizontal, reciprocating low-pressure compressor with one 9.3HP Yanmar L100W diesel engine driving one Champion R15 pump. Pump and engine are mounted on a 80-gallon storage tank. The HDR5-3Y delivers 21.7 ACFM at 175 psi (36.9 m³/hr @ 12 bar). CALL FOR SPECIAL PRICING OPTIONS! Ships free in the continental United States. For international and outlying state delivery rates, please contact the Nuvair sales team for assistance.
The Champion R-Series of reciprocating compressors have a time-tested, proven design. Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life, and a tremendous value. A wide selection of configurations and premium quality available options make the R-Series compressors the solution to your application.
|
Why Buy a Champion R-Series Compressor from Nuvair.com? You have options when it comes to buying a Champion R-Series compressor. So why choose Nuvair.com? Because we’re not just another online retailer—we’re a full-service compressor company with decades of hands-on experience. Unlike drop shippers who simply process orders from behind a screen, we service what we supply and support every customer like a partner. When you buy from Nuvair.com, you're investing in more than just equipment. You're gaining access to a team of compressor experts committed to helping you keep your system running smoothly. Whether it's maintenance, repairs, or product support, our in-house technicians are just a call, click, or email away. Experience the Nuvair difference—reliable products, expert service, and real customer care. Contact us today to learn more and for special pricing options. |
ORDER ONLINE — FREE SHIPPING!
R-Series Base Version Includes:
- R-Series R15 Pump
- Yanmar L100W Diesel Engine
- Electric Key Start Switch
- Battery not included - Vibration Isolators
- ASME Coded Receiver
- Intake Filter / Silencer
- Enclosed Belt Guard
- Head Unloaders for Constant Load/No Load Operation
- Tank Mounted Units Have Pilot Valve with Toggle for Loadless Starting Without Bleeding Off the Receiver
- California Code Compliant Receiver
- 175 psi Set Pressure
CALL FOR ORDERING ASSISTANCE
R-Series Optional Equipment:
- Vinyl (epoxy) Lined Tank
- Galvanized Coated Tank
- Air Filter Maintenance Indicator
* Hour Meter, Test/Off/Auto Switch, Low Oil Stop Control, Automatic Electric Tank Drain, and High Temperature Switch all have N4 rating as the standard product offering.
Specifications
| SKU | Tank Capacity |
Pump Model |
Motor HP |
Dimensions (L x W x H) |
Shipping Weight |
175 psi RPM |
175 psi ACFM |
|---|---|---|---|---|---|---|---|
| HDR5-8Y | 80 gallon (303 L) |
R15 | 9.3* | 67.5 × 21.3 × 49.1" 171.5 × 54.1 × 124.7 cm |
680 lb (308 kg) |
940 | 21.7 |
* The Yanmar L100W 9.3HP diesel engine is California Code compliant.
Standard Warranty
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. The Champion philosophy ensures long-lasting, reliable equipment. Our warranty program demonstrates our confidence in our products. Each new Champion assembled unit has a 3-year warranty on the compressor pump against defects in materials of workmanship under normal use and service.
SEE BELOW TO ORDER ONLINE
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Champion compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (parts & labor) providing 6 YEARS of worry-free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24 months. See Premium Warranty form BU-28 for complete extended warranty details.
- Premium Warranty kit has all necessary service items (oil & filters) for 6 years of annual maintenance.
- The use of approved Champion lubricants is required to maintain the extended warranty period.
