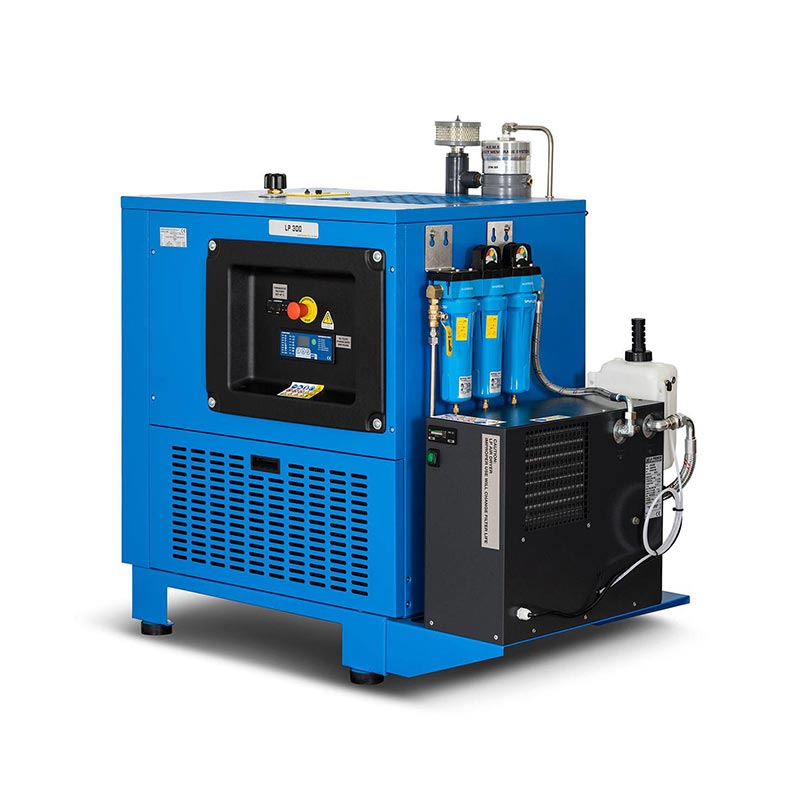

Coltri/Nuvair LP300 Rotary Nitrox Generator
The Coltri/Nuvair LP300 rotary nitrox generator consists of an industrial screw-type compressor that delivers air at a pressure of 175 psi (12 bar) to a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% oxygen (O2). The enriched air can be compressed at a pressure of 3365 psi (232 bar) in combination with a high-pressure compressor. The percentage of oxygen obtained at the output can be regulated from 22.4% to 40% thanks to a valve accessible directly on top of the compressor. The oxygen analyzer allows to verify the correct percentage regulated through the appropriate valve. Available in two power configurations: 208-230V/E3/60Hz and 415V/E3/50Hz.
yes
Features
- Coltri 10 hp rotary screw compressor
- Three-phase electric motor (50Hz or 60Hz)
- Pump rated at 32 ACFM (906 L/min) at 175 psi
- Open marine style 6061 aluminum frame
- Vertical over/under compressor mounting
- Hankison LP Three Filter System
- Coalescing and particles to 1 micron
- Water and oil vapor to 0.1 micron
- Oil vapor removal to 0.003 ppm - Modulation device
- Fan Cooled Air/Oil Cooler
- Manual Compressor Controller
- Refrigerated Air Dryer
Includes
- Two (2) oxygen analyzers
- High-pressure/Low-pressure regualtor with flow meter for oxygen analysis
- Nuvair 546 food grade lubricant
- DP gauges, mounting brackets, and auto drains
- Semi-permeable membrane system
- 220-volt heater with thermostat
- Static mixing tyle with inline sensor
- All hoses and plumbing
- (25) nitrox scuba tank wraps
- Installation Manual
- Daily Operations Manual
- User Manual
Specifications
| Model | LP300 |
|---|---|
| Dimensions (L x W x H) | 47 x 49 x 34 in (119.5 x 126 x 85 cm) |
| Weight | 600 lb (272 kg) |
| 208-230 V / E3 / 60 Hz | SKU 7060.2-C |
| 415 V / E3 / 50 Hz | SKU 7060.6-C |
| LP Compressor Capacity | 32 ACFM @ 175 psi (906 L/min @ 12 bar) |
| Rated to Supply FAD for 40% O2 FAD for 36% O2 FAD for 32% O2 |
11 CFM (311 L/min) 14 CFM (396 L/min) 19 CFM (538 L/min) |
| Noise | 68 dB |
