MCH6 Compact High Pressure Compressor

SKU
8013-C / 8014-C / 8015-C / 8016-C

The Coltri/Nuvair MCH6 is a compact, standalone high-pressure (4500 psi/310 bar) compressor made for filling SCUBA, SCBA or paintball cylinders on the go. Powered by electric single- or three-phase motor or gas engine, the MCH6 is ideal for filling cylinders at home, on boats, at the paintball field or on scene of an emergency incident.

The MCH6 Compact is designed for filling SCUBA, SCBA, or paintball cylinders/tanks one at a time. The compressor was not engineered or manufactured for continuous duty filling of storage tanks or cascade storage systems of any kind. Its sturdy enclosure and easily accessible lifting handles makes it ideal for portable applications. MCH6 Compact compressors are slightly heavier and have a larger footprint than the MCH6 Portable compressor line. Fill an 80 cu ft scuba tank in about 19-23 minutes based upon power source. Fill hose and air filtration system included.

Features

  • Excellent portability
  • Four stage compressor block
  • 4500 psi (310 bar) maximum pressure
  • Grade E breathing air filtration
  • Hour meter comes standard on gas powered units

Options

  • Pressure switch
  • Automatic condensate drains
  • Electric hour meter
  • Stainless steel frame
  • Visual CO & moisture indicator

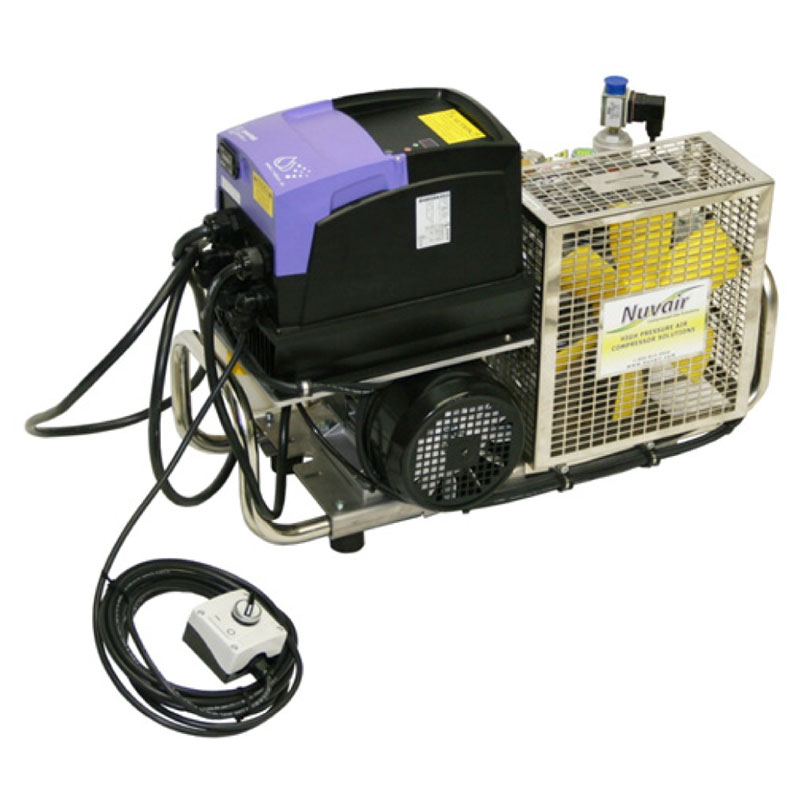

  • Inverter drive for use with smaller generators

Specifications

ModelPortable Compact MCH6 / 3EPortable Compact MCH6 / 3.5EPortable Compact MCH6 / 3.5G
Fill Time* Approx. 23 Minutes Approx. 19 Minutes Approx. 19 Minutes
Cubic Feet / Minute 2.8 FAD 3.4 SCFM 3.5 FAD 4.2 SCFM 3.5 FAD 4.2 SCFM
Liters/Minute 80 100 100
Engine Options Single-Phase Electric Three-Phase Electric Honda Gas
(SKU: 8013-C)
115 V / E1 / 60 Hz 28 Amps
(SKU: 8015-C)
N/A N/A
230 V / E1 / 50 or 60 Hz 14 Amps
(SKU: 8014.1-C)
N/A N/A
230 V / E3 / 50 or 60 Hz N/A 11 Amps
(SKU: 8016.2-C)
N/A
Engine Power 3 hp (2.2 kW) 4 hp (3 kW) 5.5 hp (4.1 kW)
Max Operating Pressure 4500 psi (310 bar) 4500 psi (310 bar) 4500 psi (310 bar)
RPM 2240 2800 2800
Number of Stages 4 4 4
Number of fill hoses 1 1 1
Condensate Drain Manual Manual Manual
Sound Level @ 3 Meters 82 dB 83 dB 87 dB
Dimensions
(L x W x H)
14.5 x 29 x 19 in
(37 x 74 x 48 cm)
14.5 x 29 x 19 in
(37 x 74 x 48 cm)
14.5 x 29 x 19 in
(37 x 74 x 48 cm)
Weight 126 lb (57 kg) 125 lb (57 kg) 108 lb (49 kg)
Lubrication Splash Lubrication, Capacity 11 oz
Air Quality DIN 3188 - CGA Grade E - NFPA 1500 - EN12021

Accessories

Autodrains $620.61 $620.61 N/A
Stainless Steel Frame $434 $434 $434
Auto Shutdown Pressure Switch $175 $175 $175
Hour Meter $79 $79 Standard
CO & Moisture Indicator $240 $240 $240

* Fill time based on 80 cu ft cylinder from 500 to 3000 psi.
