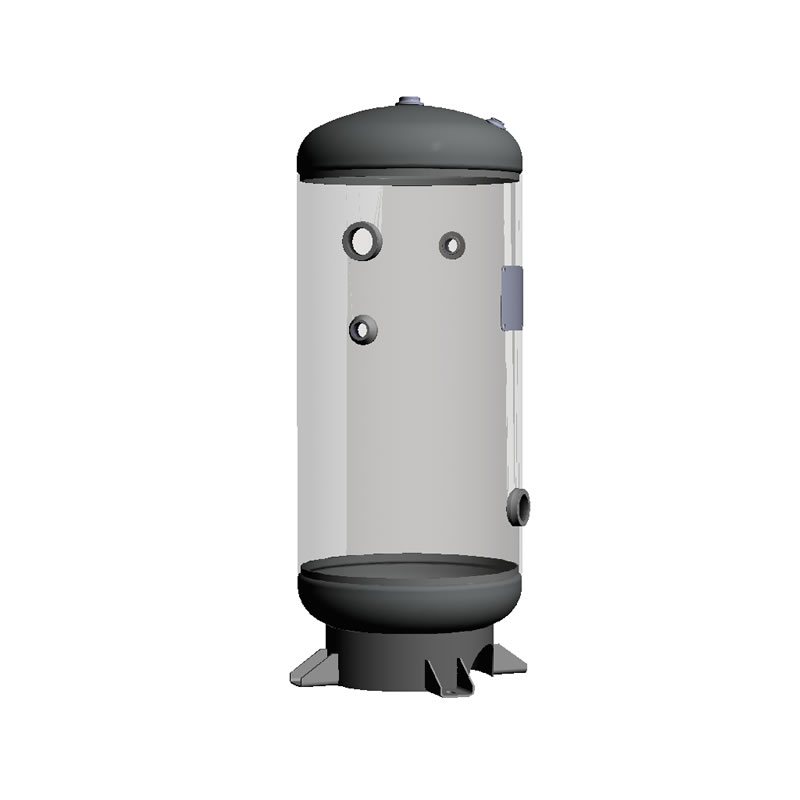

60 Gallon, 200 psi Vertical Volume Tank

This 60-gallon vertical volume tank is ASME rated. Measures 20 in O.D. x 48 in L. Base ring: 2-11/16 in H. No top plate. Special interior and exterior coatings can be quoted to meet your specifications. Available in carbon steel shop primer and carbon steel powder coated colors. Maximum working pressure: 200 psi.

SKU
yes

Specifications

This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Vessels are "U" stamped and registered with National Board. Two tanks with different finishes listed below. Quotes for special interior and exterior coating options available.

SKU 302406 302410-PC-GRN185 302410-PC-BL01 302410-PC-BL468
Volume 60 gal 60 gal 60 gal 60 gal
Cubic Feet 22.6 22.6 22.6 22.6
Material Carbon Steel Carbon Steel Carbon Steel
Exterior Finish Standard Shop Primer Powder Coated Green Powder Coated Black Powder Coated Blue
Interior Finish As Welded, Unfinished As Welded, Unfinished As Welded, Unfinished As Welded, Unfinished
Working Pressure (psi) 200 200 200 200
Operating Temperature ≤650°F ≤650°F ≤650°F ≤650°F
O.D. 20 in 38 in 38 in 38 in
Length 48 in 48 in 48 in 48 in
Weight 196 lb 196 lb 196 lb 196 lb
