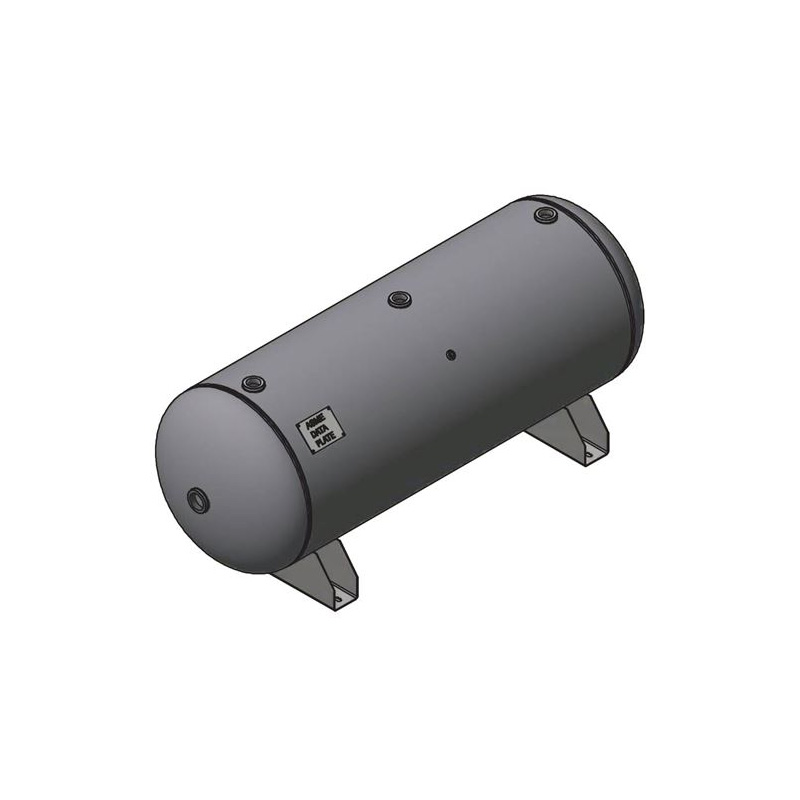

60 Gallon, 300 psi Horizontal Volume Tank

This 60-gallon horizontal volume tank is ASME rated. Measures 20 in O.D. x 48 in L. Foot brackets: 3-7/32 in H. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 300 psi.

yes

Specifications

This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Quotes for special interior and exterior coating options available.

SKU A10029-300
Volume 60 gal
Cubic Feet 8
Material Carbon Steel
Exterior Finish Standard Shop Primer
Interior Finish As Welded, Unifinished
Working Pressure (psi) 300
Operating Temperature ≤400°F
O.D. 20 in
Length 48 in
Weight 205 lb
Additional Equipment  Tank only
