Remote Oxygen Sensor Replacement | 9506

$95.00

The Nuvair 9506 remote, inline replacement oxygen sensor is for use with the Nuvair Pro O2 Remote - Handheld (SKU 9452) and Nuvair Pro O2 Remote - Panel Mount (SKU 9460) oxygen analyzers. Sensor may be labeled R17S1.

SKU
9506

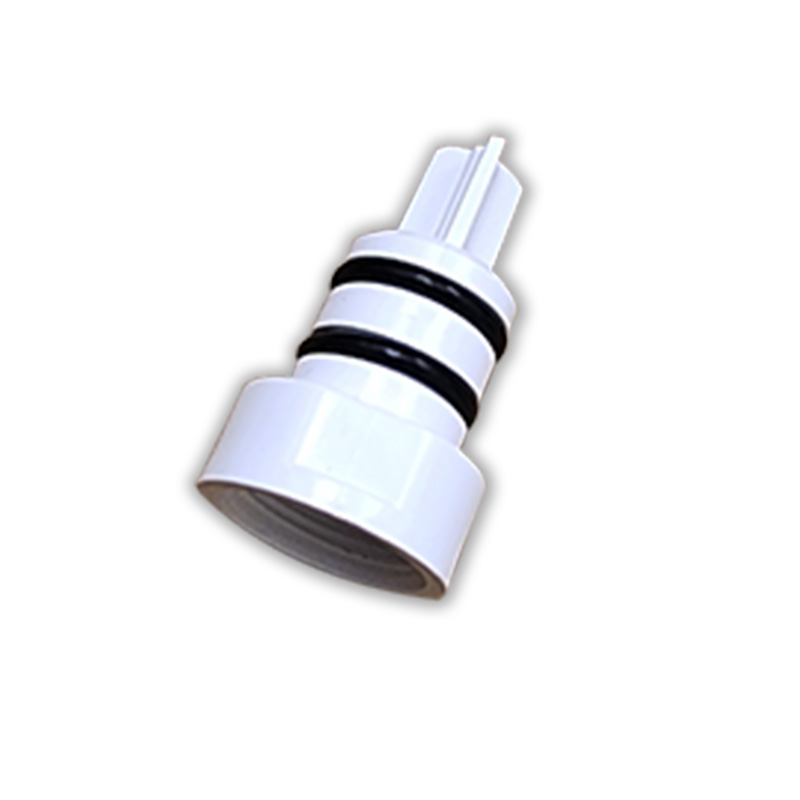

The Nuvair 9506 is a remote, inline replacement electrochemical oxygen sensor for gas analyzers. Choose from two options: Remote Oxygen Sensor without Diverter (SKU 9506) or Remote Oxygen Sensor with Diverter (SKU 9506-D).

Under normal use, oxygen sensors have an expected service life of 36 months. The 9506 replacement sensor fits the following analyzers:

  • Nuvair Pro O2 Remote - Handheld (SKU 9452)
  • Nuvair Pro O2 Remote - Panel Mount (SKU 9460)

WARNING: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.

Specifications

Output 25±2 mV in air at 25°C/77°F, sea level
Electrical Connector Typical mating plug switchcraft: .141" (3.5mm) miniature phone plugs - screw or clamp-lug terminal
Polarity: Tip = negative (–), Sleeve = positive (+)
Range 0-100% Oxygen
Accuracy ±1% of full scale at constant temperature and pressure (0-1 atm) when calibrated with 100% oxygen
Sensor Type Electrochemical
Expected Sensor Life 36 months in air at 25° C/77°F and 50% rh
Response Time <6 seconds for 90% of final value
Operating Temperature 32-104°F (0-40°C)
Storage Temperature 32-122°F (0-50°C)
Humidity 0-99% rh (non-condensing)
Weight 1.1 oz (31 g)
Application For surface/above water in-line gas oxygen analysis; not intended for underwater use.
Warranty 0 – 12 Months Free Replacement
13 – 18 Months 50% Off Replacement
19 – 24 Months 25% Off Replacement
External Thread Size M 16X1
