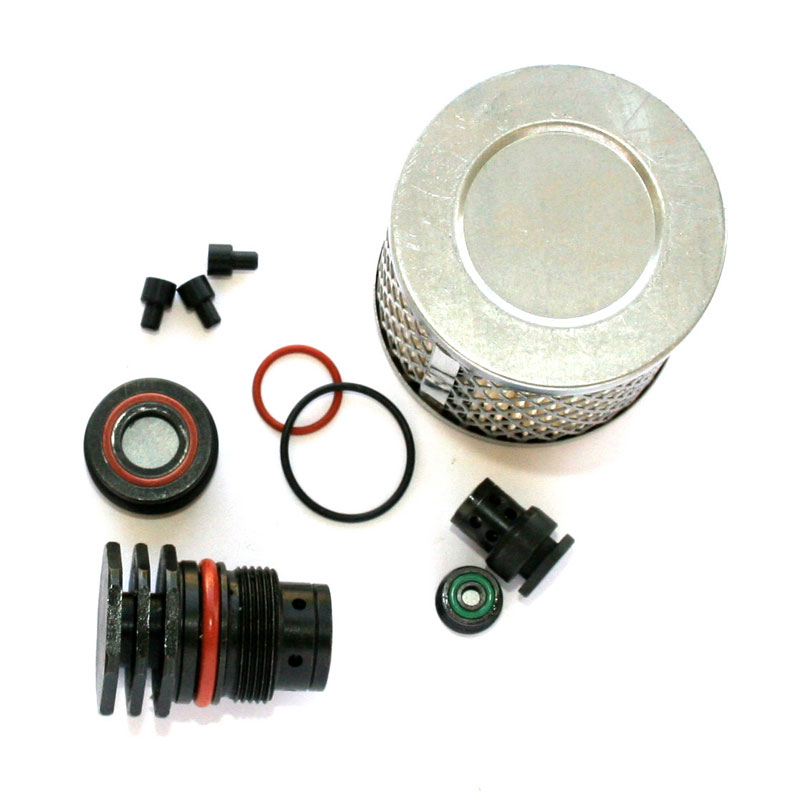

1000-Hour Compressor Service Kits

Our 1000-hour service kits are available for compressors we service and sell. Select the specific 1000-hour service kit for you compressor on this page. A breakdown of service kit parts is below under DETAILS.

Specifications

1000-Hour Service Kit Quantity Part SKU Part Description
MCH13
SKU 6016-13
3 13-00-0162 Seats For Manual Condensate D
1 13-01-0004 1st Stage Valve Plate
1 13-02-0049/R 2nd Stage Exhaust Valve MCH13/16 Kit
1 13-01-0005 1st Stage Gasket Upper Head
1 13-01-0003 First Stage 88mm Gasket For 7
1 SC000370 Intake Filter Cartridge MCH8
1 13-03-0028 3rd Stage Exhaust Valve
4 ORX065 Filter Cap O-Ring
1 ORX022 Aflas O-Ring
1 ORX030 Viton O-Ring
1 13-03-0020/N 3rd Stage Inlet Valve (MCH13-16)
1 13-02-0044/R 2nd Stage Suction Valve Kit
1000-Hour Service Kit Quantity Part SKU Part Description
MCH13 Red Head
SKU 6016-13.3
1 13-01-0004 1st Stage Valve Plate
1 13-01-0005 1st Stage Gasket Upper Head
1 13-01-0003 First Stage 88mm Gasket
1 13-02-0044/R 2nd Stage Suction Valve Kit
1 13-02-0049/R 2nd Stage Exhaust Valve MCH13/16 Kit
1 ORX030 3rd Stage Cylinder O-Ring
3 13-00-0162 Seats For Manual Condensate Drains
1 13-03-0022/15/R 3rd Stage Red Head Valve Kit MCH 5-16
4 ORX065 Filter Bottom Top O-Ring (13-00-0155)
1 SC000370 Intake Filter Cartridge MCH 8/13/16/26/32
1000-Hour Service Kit Quantity Part SKU Part Description
MCH16
SKU 6016-16
3 13-00-0162 Seats For Manual Condensate D
1 13-01-0004 1st Stage Valve Plate
1 13-02-0049/R 2nd Stage Exhaust Valve MCH13/16 Kit
1 13-01-0005/N New 1st Stage Gasket MCH13-16 Tall Head
1 16-01-0003 1st Stage 95mm Gasket for 9CFM
1 SC000370 Intake Filter Cartridge MCH8
1 13-03-0028 3rd Stage Exhaust Valve
4 ORX065 Filter Cap O-Ring
1 ORX022 Aflas O-Ring
1 ORX030 Viton O-Ring
1 13-03-0020/N 3rd Stage Inlet Valve (MCH13-16)
1 13-02-0044/R 2nd Stage Suction Valve Kit
1000-Hour Service Kit Quantity Part SKU Part Description
MCH16 Red Head
SKU 6016-16.3
1 13-01-0004 1st Stage Valve Plate
1 13-01-005/N 1st Stage Gasket MCH13-16 Tall Head
1 16-01-0003 1st Stage 95mm Gasket for 9 CFM
1 13-02-0044/R 2nd Stage Suction Valve Kit
1 13-02-0049/R 2nd Stage Exhaust Valve MCH13-16 Kit
1 ORX030 3rd Stage Cylinder O-Ring
3 13-00-0162 Seats for Manual Condensate Drains
1 13-03-0022/15/R 3rd Stage Red Head Valve Kit MCH5-16
4 ORX065 Filter Bottom Top O-Ring (13-00-0155)
1 SC000370 Intake Filter Cartridge for MCH8/13/16/26/32
1000-Hour Service Kit Quantity Part SKU Part Description
MCH22-36
SKU 6016-36
1 36-01-021 1st Stage Intake Valve MCH-36
1 36-01-024 1st Stage Exhaust Valve MCH-36
2 ORX057 1st Stage Valve Bell O-Ring
2 36-01-020 First Stage Copper Washer
1 36-02-012 2nd Stage Intake Valve MCH-36
1 36-02-015 2nd Stage Exhaust Valve MCH 36
2 36-02-011 2nd and 3rd Stage Copper Washer
2 ORX062 2nd and 3rd Stage Valve Cover O-Ring
1 ORX072 2nd Stage Discharge Valve O-Ring
1 36-03-015 3rd Stage Intake Valve MCH-36
1 36-03-018 3rd stage exhaust valve
2 36-02-011 2nd And 3rd Stage Copper Washer
2 ORX062 3rd Stage Valve O-Ring
1 ORX072 3rd Stage Discharge Valve O-Ring
1 13-03-0020/N 4th Stage Intake Valve MCH36
1 13-03-0028 4th Stage Exhaust Valve MCH36
1 13-03-0033 8mm COPPER WASHER
2 ORX011 Discharge/Intake Valve O-Ring
1 ORX022 4th Stage Discharge Valve O-Ring
2 GUAR1319 4th Stage Head Fittings Copper Gasket
1 ORX030 4th Stage Cylinder to Head O-Ring
2 ORX027 4th Stage Cylinder External O-Ring
1 36-04-009/R Standard 4th Stage Cylinder Kit MCH36
1 36-06-006/R Oil Filter Kit MCH16TP, MCH22-36
1 162-762-S Air Intake Filter RVG-10 & MCH36
2 36-05-050/ALL/R MCH13/16 Separator Fitting Internal Plug Kit
3 13-00-0162 Seats For Manual Condensate Drains
1 ORX071 Buna O-Ring
1000-Hour Service Kit Quantity Part SKU Part Description
MCH22/30/36 Blue Head
SKU 6016-36.5
1 36-01-021 1st Stage Intake Valve MCH36
1 36-01-024 1st Stage Exhaust Valve MCH36
2 ORX057 1st Stage Valve Bell O-Ring
2 36-01-020 First Stage Copper Washer
1 36-02-012 2nd Stage Intake Valve MCH36
1 36-02-015 2nd Stage Exhaust Valve MCH36
2 36-02-011 2nd and 3rd Stage Copper Washer
2 ORX062 2nd and 3rd Stage Valve Cover O-Ring
1 ORX072 2nd Stage Discharge Valve O-Ring
1 36-03-015 3rd Stage Intake Valve MCH36
1 36-03-018 3rd Stage Exhaust Valve
2 36-02-011 2nd And 3rd Stage Copper Washer
2 ORX062 3rd Stage Valve O-Ring
1 ORX072 3rd Stage Discharge Valve O-Ring
1 36-04-009/15/N/R 3rd Gen 4th Stage Piston/Cylinder Kit MCH36
1 36-04-011/1/R 3rd Gen 4th Stage Valve Head Kit for MCH36
1 36-06-006/R Oil Filter Kit MCH16TP, MCH22-36
1 843 Vacuum Filter Element. Use for 36-05-0504
2 SILENZ-E90A4003 Silencer 1/4in. E90A4003
4 13-00-0162 Seats For Manual Condensate Drains
1 ORX071 Buna O-Ring
1000-Hour Service Kit Quantity Part SKU Part Description
MCH24 Blue Head
SKU 6016-36-CNG
1 36-01-021 1st Stage Intake Valve MCH-36
1 36-01-024 1st Stage Exhaust Valve MCH-3
2 ORX057 1st Stage Valve Bell O-Ring
2 36-01-020 First Stage Copper Washer
1 36-02-012 2nd Stage Intake Valve MCH-36
1 36-02-015 2nd Stage Exhaust Valve MCH 36
2 36-02-011 2ND and 3RD Stage Copper Washer
2 ORX062 2nd and 3rd Stage Valve Cover O-Ring
1 ORX072 2nd Stage Discharge Valve O-Ring
1 36-03-015 3rd Stage Intake Valve MCH-36
1 36-03-018 3rd Stage Exhaust Valve
2 36-02-011 2nd And 3rd Stage Copper Washer
2 ORX062 3rd Stage Valve O-Ring
1 ORX072 3rd Stage Discharge Valve O-Ring
1 36-04-009/15/N/R 3rd Gen 4th Stage Piston/Cylinder Kit MCH36
1 36-04-011/1/R 3rd Gen 4th Stage Valve Head Kit for MCH36
1 36-06-006/R Oil Filter Kit MCH16TP, MCH22-36
1 05-01-040/C Gas Filter Cartridge MCH5/10  50 micron
1 SILENZ-E90A4003 Silencer 1/4in. E90A4003
4 13-00-0162 Seats For Manual Condensate Drains
1 ORX071 Buna O-Ring
1000-Hour Service Kit Quantity Part SKU Part Description
CNG5
SKU 6016-CNG5
1 05-01-05/R 1st Stage Reed Valve MCH5 Kit
1 05-01-040/C Gas Filter Cartridge MCH5/10  50 micron
3 13-00-0162 Seats For Manual Condensate Drains
1 13-02-0049/R 2nd Stage Exhaust Valve MCH13/16 Kit
1 13-02-0044/R 2nd Stage Suction Valve Kit
1 13-03-0020/N 3rd Stage Inlet Valve (MCH13-16)
1 13-03-0028 3rd Stage Exhaust Valve (Mch13-16)
1 ORX022 3rd Stage Exhaust Valve O-Ring (13-03-0029)
4 ORX065 Filter Top/Bottom O-Ring (13-00-0155)
1 13-03-0124 N/A - 3rd Stage Piston Rings (Set) Up To 11/2013
1000-Hour Service Kit Quantity Part SKU Part Description
EK76
SKU 6016-EK76
1 300KBA035 Air-Oil Separator CompAir EK76
1 300KBA1446 Oil-Filter Element CompAir EK76
1 A11207674 Air Filter for EK76 2in.
2 9409 Nuvair 546 Food Grade Synthetic Rotary Screw Compressor Oil - 1 gal
