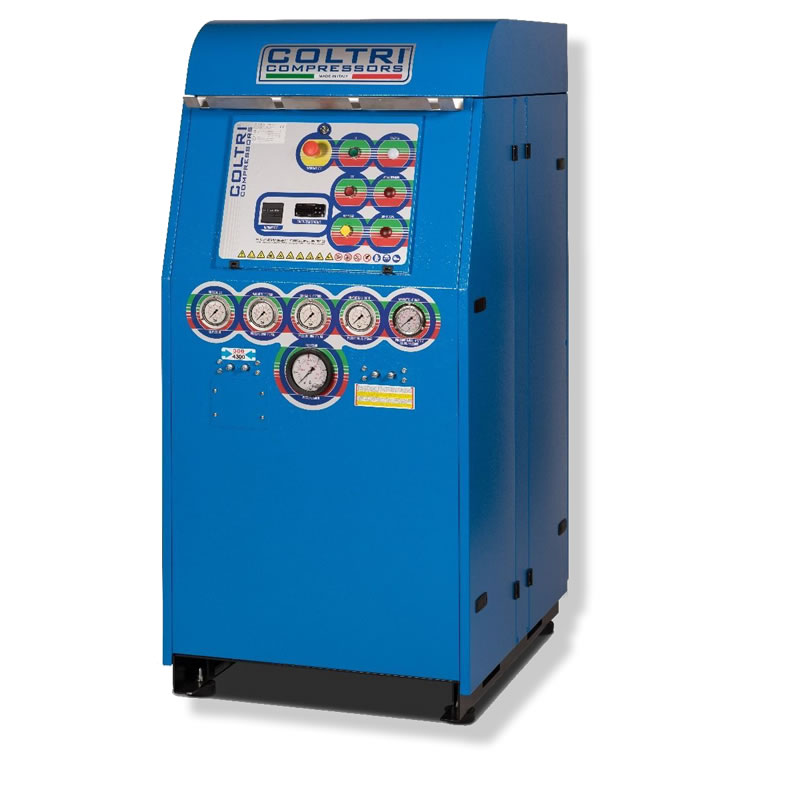

Coltri Silenced Nitrogen Booster
SKU
6917.2
With a working pressure of up to 6000 psi (413 bar), the Coltri Silenced Nitrogen Booster is based on the successful MCH22-36 pump platform. Charging rate is variable and is based upon intake pressure of 29-73 psi (2-8 bar).
A booster compressor receives gas under pressure and is therefore more efficient and pumps more gas per horsepower than a standard compressor. A nitrogen booster is equipped with a service stage to recover nitrogen blowby from the crankcase. The booster units are vented at each start-up to remove the nitrogen amount which eventually has been contaminated during booster standby.
Standard Features
- Inlet regulator with pressure switch and solenoid valve
- Small inlet surge tank
- Control panel with pressure-free automatic restart
- High temperature display
- Automatic shutdown for high temperature
- Automatic shutdown for low oil
- Phase control recognition for proper rotation
- Hour meter
- Interstage pressure gauges
- Oil pressure gauge
- Oil level sight gauge
- Low presuure oil pump with filter
- Large stainles steel interstage cooling tubes
- Large condensate seperators
- Automatic condensate drains
- Condensate test button
- 90,000 cu ft dual filtration system
- Steel frame with scratch-proof powder coating
Optional Equipment
- CO analyzer
- Moisture analyzer
- O2/nitrogen analyzer
Specifications
| Charging Rate | Varibale based on intake pressure |
|---|---|
| Power | Three-phase electric motor |
| Motor Power | 10 hp (7.5 kW) |
| Available Power Systems |
208-230 V / E3 / 60 Hz |
| Stages | 4 cylinder, 3 stage |
| Intake Pressure | 29-118 psi (2-8 bar) |
| Maximum Working Pressure | 6000 psi (413 bar) |
| Operating Temperature | 32-120°F (0-48°C) |
| Compressor RPM | 880 |
| Dry Weight | 913 lb (414 kg) |
| Cooling Air Required | 3000 CFM |
| Noise Level | 78 dB @ 1 m |
| Lubrication | 4.5 qt oil pressure lubricated |
| Dimensions (L x W x H) | 31 x 39 x 61 in (79 x 99 x 155 cm) |
| Warranty | 12 months |
