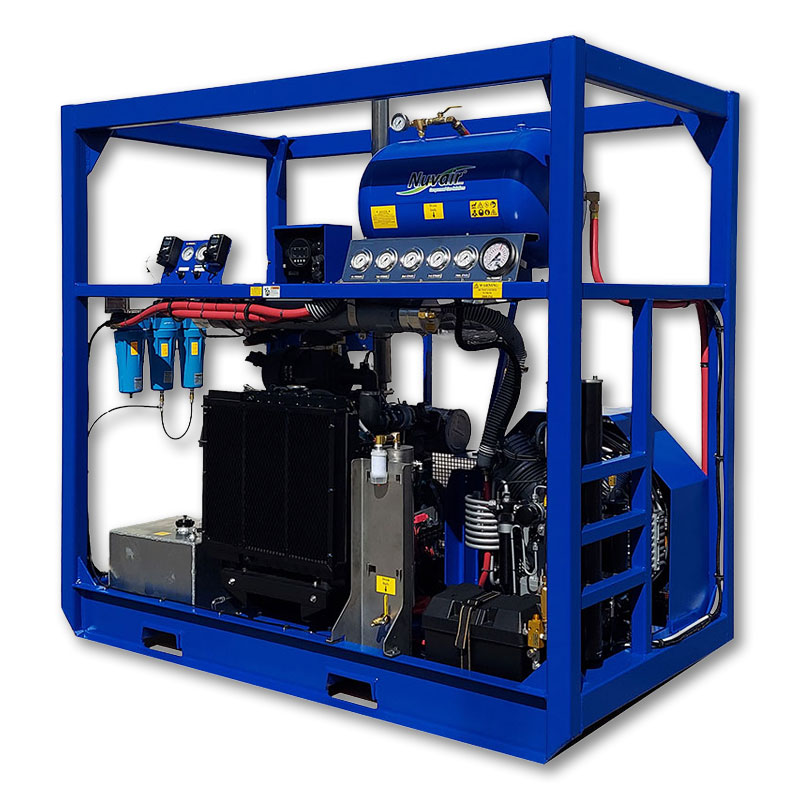

MCH36 Diesel LP/HP Nitrox Generator System

SKU

7071DK4F

The MCH36 low pressure/high pressure (LP/HP) turnkey nitrox generator system is powered by a 49.8 HP Kubota D1803 Tier 4 water-cooled diesel engine that drives an MCH36 high-pressure compressor and a low-pressure EK76 rotary screw compressor. The system generated 19 CFM of EANx40 (40% oxygen). Filtration includes two 35" high pressure filters (60,000 cu ft) and a three-stage low pressure filtration system.

Details

Using a semi-permeable membrane, the MCH36 Diesel LP/HP Nitrox Generator System generates 22–40% nitrox without the hazards or expense of partial-pressure blending with stored high-pressure oxygen (O2). The membrane separates a portion of nitrogen from ambient air, leaving an enriched air nitrox mixture.

Features

Generates 19 CFM (550 L/min) of 40% high-pressure nitrox
Steel Powder Coated Frame
Open Configuration for Easy Access & Cool Running
Operation Panel with “Dial-A-Pressure” Automatic Shut Down, Automatic Shut Down for High Temp & Low Oil
Digital Deep Sea Control Box with Engine Safety Shutdowns
Hour Meter, Stage & Oil Pressure Gauges
Automatic Condensate Drains & Pressure Free Start/Stop
Upgraded Filtration: 60,000 ft³ (2 x 35" Filter Towers + Additional 15" Separator)
7,500 psi Inter-Stage Pressure Gauges
Load-less Start
Hayes Bearing Block
Upgraded Fuel Filtration
13-gallon Fuel Tank

Drive Train

Kubota D1803 Diesel Engine Tier 4 Final
Motor Size: 49.8 Gross HP @ 2700 RPM Max, 3-Cylinder, Water Cooled, Electric Start
Operating Temperature: 32º F-120º F (0 - 48º C)

High Pressure Side

MCH36 Block
Type: 4 cylinder, 4 stage, Air Cooled, Pressurized Oil Lubricated Compressor
Charging Rate 26.4 SCFM (748 L/min) Compressor
FAD Delivery rate: (36 m³/hr) 21.2 CFM
Working pressure of up to 6,000 psi (414 bar)
Compressor RPM: ~1200

Low Pressure Side

EK76 Rotary Screw compressor, 44 CFM @ 175 psi
30-gallon Volume Tank for Cooling and Moisture Removal
Hankison 24 Series 3-Stage LP Filtration, DP Gauges, Mounting Brackets and Auto Drains, Coalescing and particles to 1 micron, Water and Oil Vapor to .01 micron, Oil vapor removal to .003 ppm
