MCH72 Enclosed & Silenced with Touchscreen Controller
SKU
8059.3

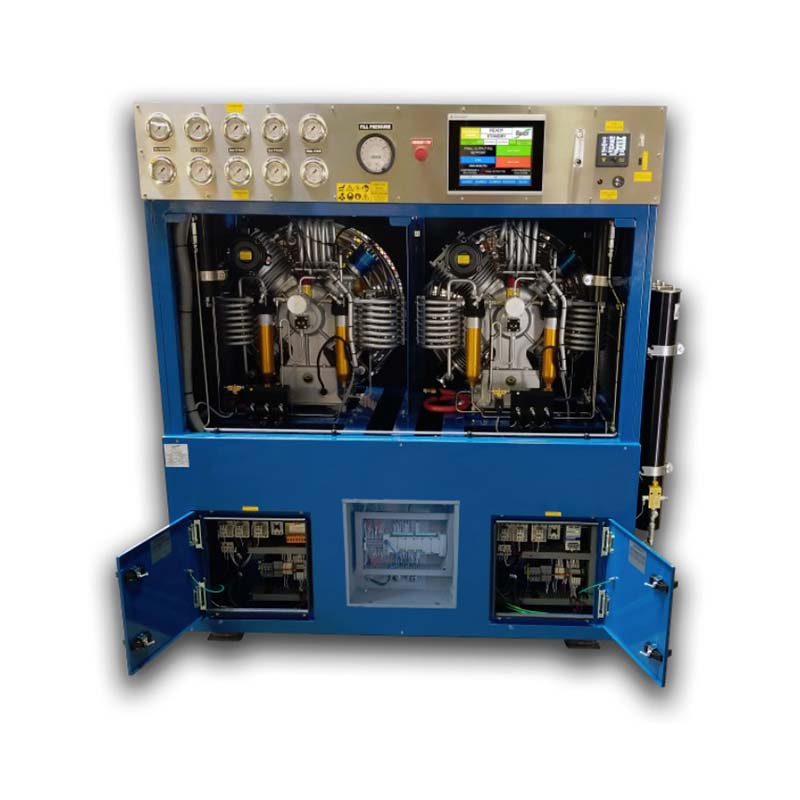

The Nuvair MCH72-PLC high-pressure breathing air compressor is equipped with a human machine interface (HMI) touchscreen system controller that allows users to monitor compressor activity and identify alarm events. Designed with two (2) Coltri MCH36 compressor blocks, the MCH72 automatically designates a "lead" and "lag" compressor and changes this designation every seven (7) days, making this system the perfect solution for critical applications. Combined charging rate for the MCH60-PLC is 44 SCFM (1246 L/min).
System Components
- Two (2) Coltri MCH36 High Pressure Air Compressors
- Each Compressor: 4 Cylinder, 4 Stage, Air Cooled - Nuvair PLC & Touchscreen Controller
- Digital Multigas Analyzer: CO / Moisture / CO2 / VOC
- Hour Meter
- Dual 20 hp Electric Motors
- 208-230V, 440V, or 460V; 3-Phase, 50Hz or 60Hz - Interstate Pressure Gauges
- (3) Condensate Separators on Each Compressor
- Large Stainless Steel Interstage Cooling Tubes
- Low Pressure Oil Pump with Filter
- Oil Level Sight Gauge and Oil Pressure Gauge
- Automatic Condensate Drains
- Loadless Start
- Low Oil Shutdown Switch
- Final Stage Head
- High Temp Switch set at 350°F
- (4) CAN-35 Filtration Towers
- (3) Dryer Filter Elements
- (1) Triplex Filter Element
- 130,000 cu ft - Aluminum Frame with Isolation Vibration Mounts
Specifications
| Compressor Models | Two (2) Coltri MCH36 |
| Charging Rate Filling an 80 cu ft tank from 500 psi |
22 SCFM (623 L/min) × 2 Total Charging Rate: 44 SCFM (1246 L/min) |
| Maximum Operating Pressure | 6000 psi (414 bar) |
| Pumping Unit RPM | 1100 |
| Number of Stages | 4 × 2 |
| Dimensions (L×W×H) | 78" (198 cm) × 38" (97 cm) × 50" (127 cm) |
| Shipping Weight | ~1950 lb (885 kg) |
| Lubrication | Pressure Lubrication, capacity 1.2 gal (4.5L) × 2 |
| Air Quality | Grade E |
