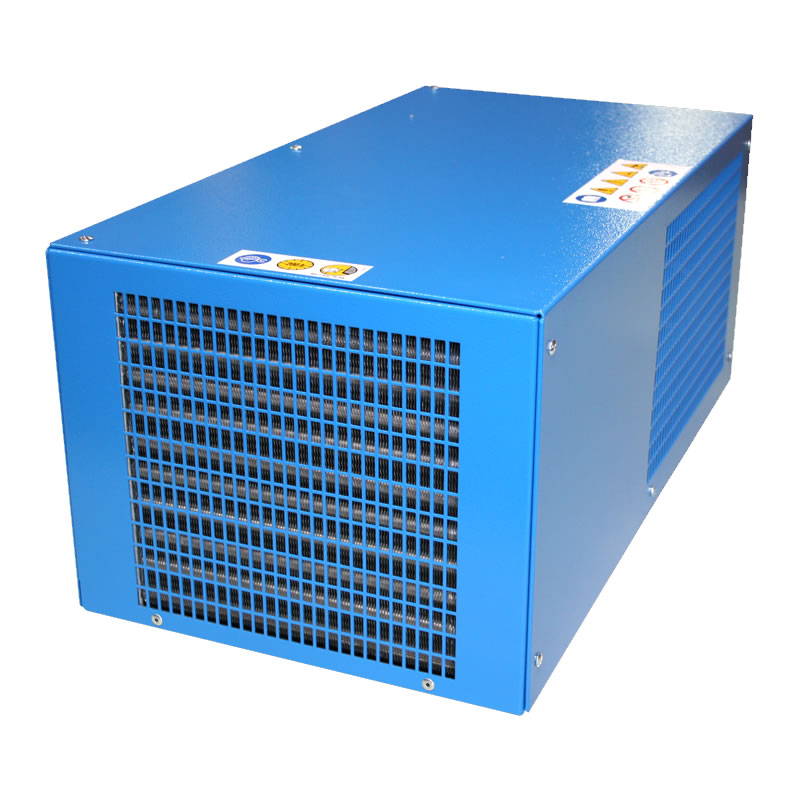

Air Dryer: 220 V, 60Hz, 22 CFM, 6000 psi
High pressure air dryer rated for 22 CFM (623 L/min) at 6000 psi (414 bar). 220 V / E3 / 50 Hz power.
SKU
Now Only
$3,700.00
Regular Price
$5,574.80
This final high pressure air dryer is positioned between the final compressor stage and water separator. The compressed air is cooled down inside a closed cooling circuit. As a result, the dewpoint of the compressed air decreases and most of the moisture and oil contained condenses and is removed by the oil and water separator. Other benefits include:
- Increases filter life—up to 5 times longer
- Improved air quality
- Less corrosion on internal mechanical parts
- Cylinders recharge with a constant humidity percentage
Specifications
Flow Rate | Maximum Operating Pressure |
Power | Tube Connections |
Weight |
---|---|---|---|---|
22 CFM (623 L/min) | 6000 psi (414 bar) | 220 V / E3 / 60 Hz | 8mm | 110 lb (50 kg) |
