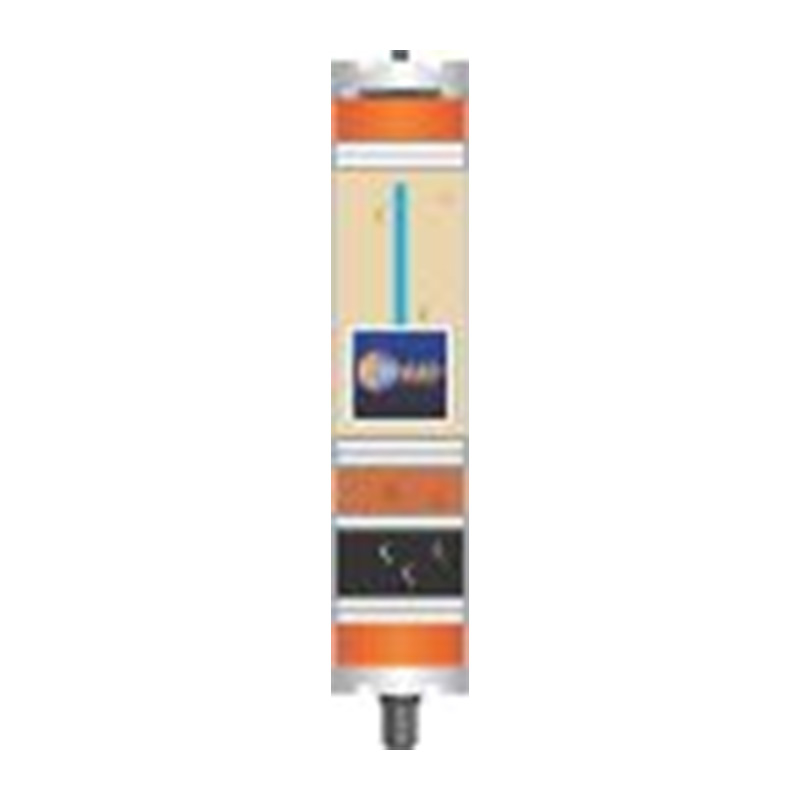

Breathing Air Filter Cartridge for American Bristol AB50XCAC / Scott
$84.05
SKU
X26242
- Buy 6 for $71.44 each and save 15%
- Buy 10 for $67.24 each and save 20%

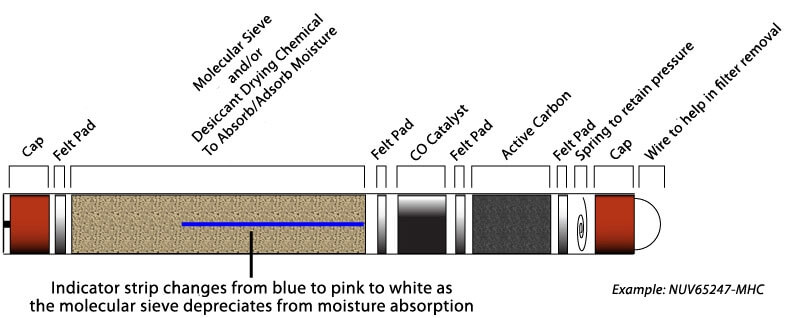

Molecular sieve, CO catalyst, and activated carbon in a disposable cartridge filter. Removes moisture, hydrocarbons, carbon monoxide, carbon dioxide, oil, taste/odor & particles. Suggested for Grade E breathing air. Fits American Bristol Industries® AB50XCAC / Scott®.
Specifications
| Typical Application | Breathing Air (Grade E) |
|---|---|
| Removes | H2O, CO, CO2, hydrocarbons, oil, taste, odor & particles |
| Micron Rating | 20μ particles |
| Dimensions | 2.75" OD x 12" L |
| Contents | Molecular sieve, activated carbon, CO catalyst |
Filter Cartridge Warnings
| DO NOT drop filter into housing. |
| REPLACE FILTERS AS A SET. |
| DO NOT use where operating temperature could exceed 120°F (49ºC). Use of a temperature alarm is recommended. |
| HEAT & HUMIDITY shorten filter life. |
| DO NOT introduce large slugs of water into filter. |
| BLOW all lines and parts clear prior to installation. |
| DO NOT use where pressure surges are likely. |
| DO NOT use in system without earth ground. |
| REMOVE all protective seals and closures. |
| NOT FOR use in aircraft. |
| ALWAYS follow standard operating procedures (SOP) for producing breathing gases. |
| MAXIMUM USEFUL LIFESPAN is six months. Shelf life is two years. |
