Tee Filter 6000 psi 1/4" MNPT x 1/4" FNPT
$126.00
SKU
1397
The Aqua Environment model 1397 Tee Filter provides a large area filter that can be easily removed for cleaning or changing without disconnecting pressure piping. Used upstream of other components such as regulators or valves it protects seats and small internal filters from particulates, rust particles, etc. Maximum rated pressure: 6000 psi (414 bar).
Specifications
| Type | Tee Filter |
| Maximum Rated Pressure | 6000 psi (414 bar) |
| Outlet Pressure Rating | 6000 psi (414 bar) |
| Inlet Port Size | 1/4" FNPT |
| Outlet Port Size | 1/4" MNPT |
| Leakage | Bubble Tight |
| Weight | 14.1 oz (400 g) |
| Overall Length | 5.9 in (15 cm) |
| Round Diameter | 1.5 in (3.8 cm) |
| Filter Area | 5.0 in2 |
| Filter Micron Rating | 30 |
| Minimum Temperature | -15°F (-26°C) |
| Filter Materials | Nickel Plated Sintered Bronze |
| Body Material | Anodized Aluminum |
| Internal Materials | Brass Sintered Bronze Filter Stainless |
| Seal Materials | Viton |
Specifications
- Air tank fill stations
- Firefighting air stations
- Instrumentation and calibration panels
- Process industry controls
- Aircraft service carts
Check items to add to the cart or
Nuvair 751 Paintball & Industrial Air Reciprocating Compressor Oil
Starting at $31.75
Nuvair 455 Food Grade Synthetic Reciprocating Compressor Oil
Starting at $31.75
Nuvair 546 Food Grade Synthetic Rotary Screw Compressor Oil
Starting at $31.75

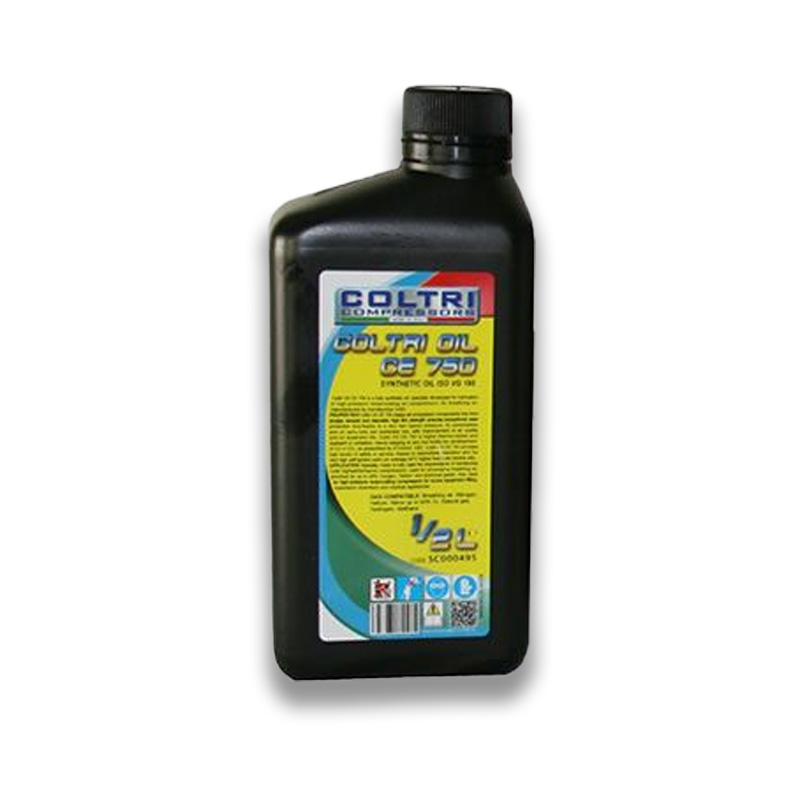

Coltri CE 750 Compressor Oil · 0.5L Closeout!
