2-Tank Air/Nitrogen Compact Horizontal Rack

SKU

FR-190

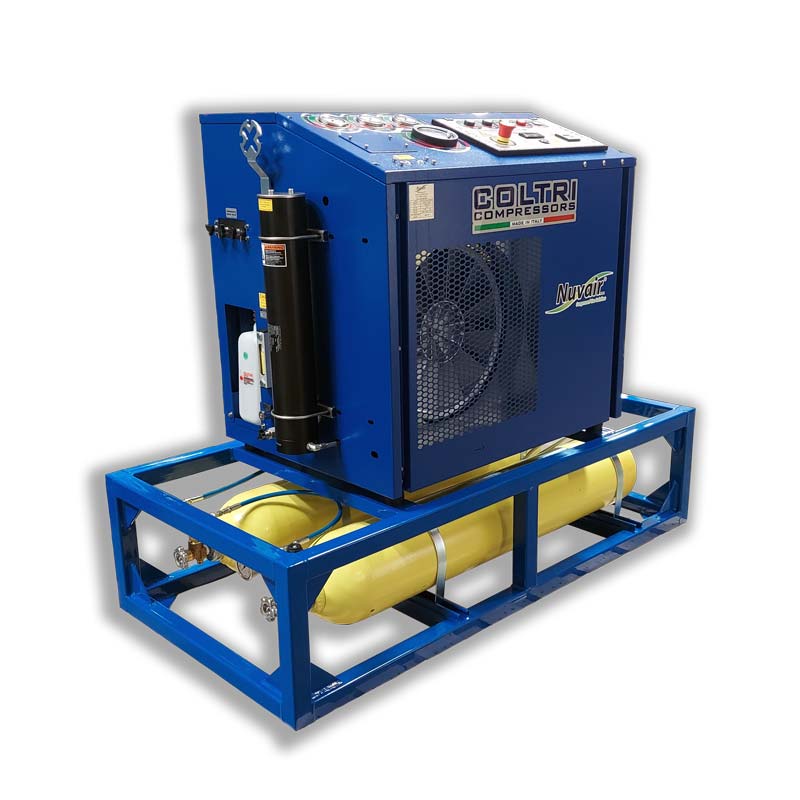

The FR-190 air or nitrogen storage rack is designed to bolt directly to the underside of a Coltri Compact compressor. The powder-coated steel 2-tank horizontal Compact rack comes fully assembled. When frame and tanks are ordered together, a stainless steel tube manifold, one inlet valve and one outlet valve are included. Pressure reducing regulators and gauges available as optional equipment. Tanks and compressor sold separately. Other racks can accommodate 1, 2, 3, 4, 6, 8, 9, 12 or 16 tanks; our custom racks can meet most requirements. Certified frames are also available.

Details

Air Rack Specifications

When the FR-190 Compact horizontal two-tank frame and optional high-pressure air tanks are ordered together, a stainless steel tube manifold, one inlet valve and one outlet valve are included. Pressure reducing regulators and gauges available as optional equipment.

SKU	Tank Capacity	Configuration	Dimensions / Included Storage Tanks	Total Air Storage Capacity	Approximate Total Weight
FR-190	2	Frame Only	64.88 L × 32.25 W × 16.0 H in	N/A	TBD
FR-190-AIRTANK	2	Frame & Air Tanks	Includes (2) 4500 psi storage tanks	987 cu ft (28 m³)	TBD

Nitrogen Rack Specifications

When the FR-190 Compact horizontal two-tank frame and gray nitrogen ISO-rated tanks (10-year hydro retest) are ordered together, a stainless steel tube manifold, one inlet valve and one outlet valve are included. Pressure reducing regulators and gauges available as optional equipment.
