Air/Nitrogen 6-Tank Storage Rack

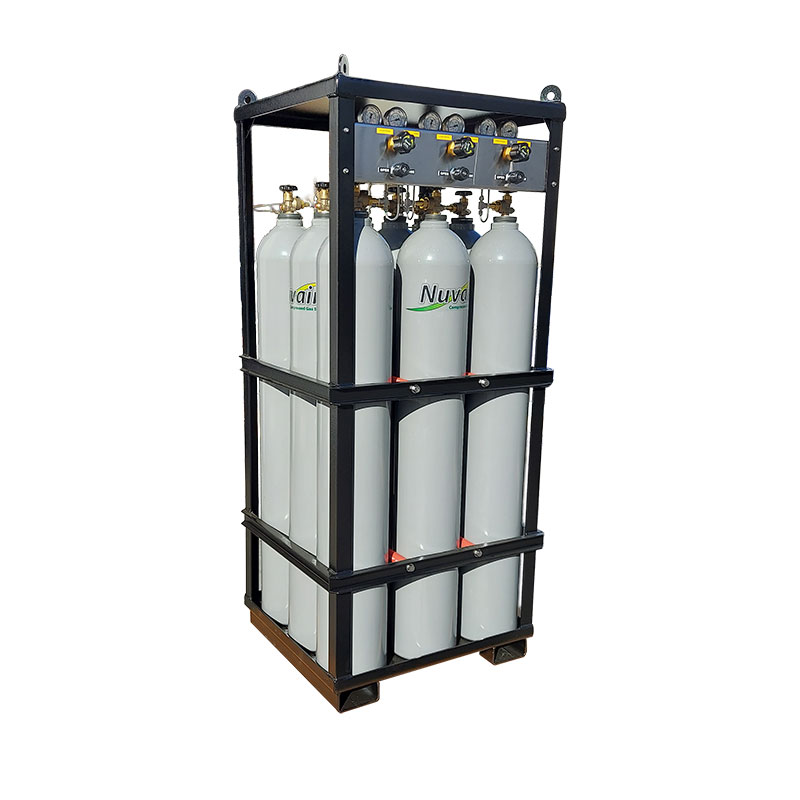

The Nuvair steel 6-tank storage rack is equipped with four-point lift eyes and fork slots for use by hoist, crane or forklift. When frame and tanks are ordered together, a stainless steel tube manifold, one inlet valve and one outlet valve are included. Pressure reducing regulators and gauges available as optional equipment. Racks are powder coated blue; other colors available upon request. Available for air or nitrogen use. Certified frame package also available on certain models. Nuvair also offers 4-, 8-, 9-, 12- and 16-tank racks.
SKU
Yes
Air Rack Specifications
The 6-tank storage rack is equipped with four-point lifting eyes for top and bottom forklift capability. The rack includes a stainless steel manifold with inlet and outlet valves. Optional yellow high-pressure air storage tanks can be ordered together with the rack.
| SKU | Tank Capacity |
Configuration | Dimensions / Included Equipment | Total Air Storage Capacity |
Approximate Total Weight |
|---|---|---|---|---|---|
| FR-NUVTR-6 | 6 | Frame Only | Dimensions: 31.56 L x 20.63 W x 70.75 H in | N/A |
275 lb |
| FR-NUVTR-6-CERT | 6 | Certified Frame Only |
Dimensions: 31.56 L x 20.63 W x 70.75 H in | N/A |
275 lb |
| NUVTR-6-4500 | 6 | Frame & Air Tanks | Includes (6) 4500 psi storage tanks, manifold and valves |
2592 cu ft (74 m³) |
1240 lb (562 kg) |
| NUVTR-6-4500-CERT | 6 | Certified Frame & Air Tanks | Includes (6) 4500 psi storage tanks, manifold and valves |
2592 cu ft (74 m³) |
1240 lb (562 kg) |
| NUVTR-6-5000 | 6 | Frame & Air Tanks | Includes (6) 5000 psi storage tanks, manifold and valves |
2832 cu ft (80 m³) |
1345 lb (610 kg) |
| NUVTR-6-6000 | 6 | Frame & Air Tanks | Includes (6) 6000 psi storage tanks, manifold and valves |
3060 cu ft (87 m³) |
1500 lb (680 kg) |
Nitrogen Rack Specifications
The 6-tank storage rack with gray nitrogen ISO-rated tanks (10-year hydro retest) is equipped with four-point lifting eyes for top and bottom forklift capability. The rack includes a stainless steel manifold with inlet and outlet valves.
| SKU | Tank Capacity |
Configuration | Dimensions / Included Equipment | Total Nitrogen Storage Capacity |
Approximate Total Weight |
|---|---|---|---|---|---|
| NUVTR-6-4500-N | 6 | Frame & Nitrogen Tanks | Includes (6) 4500 psi storage tanks, manifold and CGA680 valves Dimensions: 32 L x 22 W x 71 H in |
2592 cu ft (74 m³) |
1129 lb (512 kg) |
| NUVTR-6-4500-N-CERT | 6 | Certified Frame & Nitrogen Tanks | Includes (6) 4500 psi storage tanks, manifold and CGA680 valves Dimensions: 32 L x 22 W x 71 H in |
2592 cu ft (74 m³) |
1129 lb (512 kg) |
Options
- Air or Nitrogen Storage Tanks
- Regulator and Mount
- 415A-400: 0-400 psi Aluminum Pressure Reducing Regulator
- 415A-1500: 0-1500 psi Aluminum Pressure Reducing Regulator
- 415A-5000: 0-5000 psi Aluminum Pressure Reducing Regulator
- 415A-6000: 0-6000 psi Aluminum Pressure Reducing Regulator
- 873-400: 0-400 psi Aluminum High Flow Pressure Reducing Regulator
- 873-1500: 0-1500 psi Aluminum High Flow Pressure Reducing Regulator
- 873-5000: 0-5000 psi Aluminum High Flow Pressure Reducing Regulator - Tank Manifold with Two Additional Inlet and Outlet Valves
- Over-Pressure Relief Valve
- CGA347 Valves
- Fill/Distribution Panel
- Galvanized Frame
- Certified Frame Package
- Pull test
- Weld inspection
* All storage racks are custom-made. Please contact the sales team for estimated lead times.
