9-Tank Rack

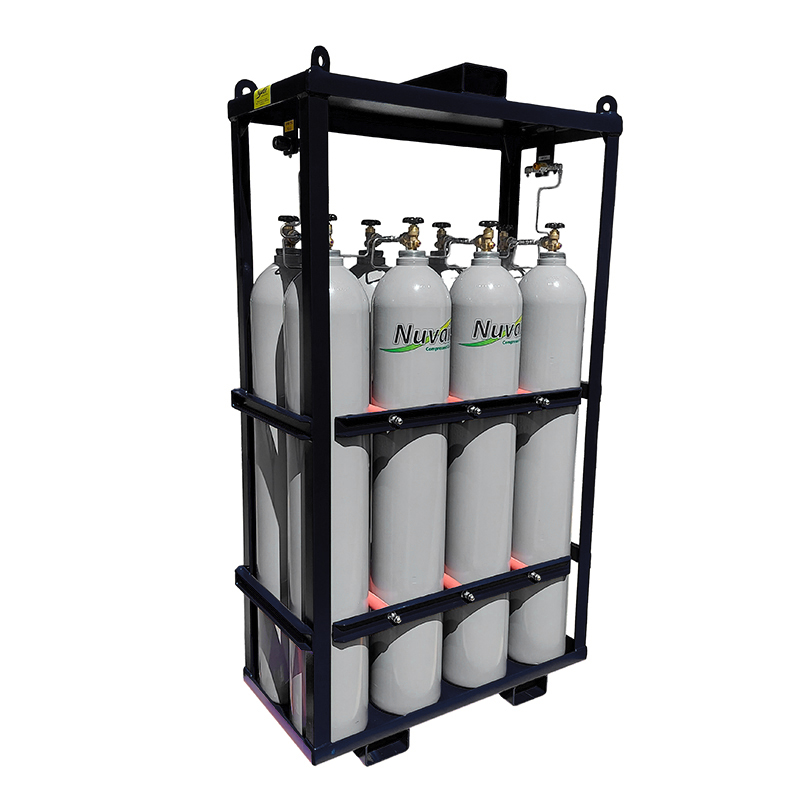

The Nuvair steel 9-tank rack is equipped with four-point lift eyes and fork slots for use by hoist, crane or forklift. When frame and tanks are ordered together, a stainless steel tube manifold, one inlet valve and one outlet valve are included. Pressure reducing regulators and gauges available as optional equipment. Racks are powder coated blue; other colors available upon request. Nuvair also offers 4-, 6-, 8-, 12-, and 16-tank racks.
Specifications
The 9-tank storage rack is equipped with four-point lifting eyes for top and bottom forklift capability. The rack includes a stainless steel manifold with inlet and outlet valves. Optional high pressure storage tanks can be ordered together with the rack.
SKU | Tank Capacity |
Configuration | Dimensions / Included Equipment | Total Air Storage Capacity |
Approximate Total Weight |
---|---|---|---|---|---|
FR-NUVTR-9 | 9 | Frame Only | Dimensions: 33.0 L x 31.0 W x 69.9 H in | N/A |
360 lb |
NUVTR-9-4500 | 9 | Frame & Tanks | Includes (9) 4500 psi storage tanks, manifold and valves |
4440 cu ft (126 m3) |
1709 lb (775 kg) |
NUVTR-9-5000 | 9 | Frame & Tanks | Includes (9) 5000 psi storage tanks, manifold and valves |
4780 cu ft (135 m3) |
1890 lb (857 kg) |
NUVTR-9-6000 | 9 | Frame & Tanks | Includes (9) 6000 psi storage tanks, manifold and valves |
5279 cu ft (150 m3) |
2126 lb (964 kg) |
Options
- Regulator and Mount
- 415A-400: 0-400 psi Aluminum Pressure Reducing Regulator
- 415A-1500: 0-1500 psi Aluminum Pressure Reducing Regulator
- 415A-5000: 0-5000 psi Aluminum Pressure Reducing Regulator
- 415A-6000: 0-6000 psi Aluminum Pressure Reducing Regulator
- 873-400: 0-400 psi Aluminum High Flow Pressure Reducing Regulator
- 873-1500: 0-1500 psi Aluminum High Flow Pressure Reducing Regulator
- 873-5000: 0-5000 psi Aluminum High Flow Pressure Reducing Regulator - Tank Manifold with Two Additional Inlet and Outlet Valves
- Over-Pressure Relief Valve
- CGA 347 Valves
- Fill/Distribution Panel
- Galvanized Frame
* All storage racks are custom-made. Please contact the sales team for estimated lead times.
