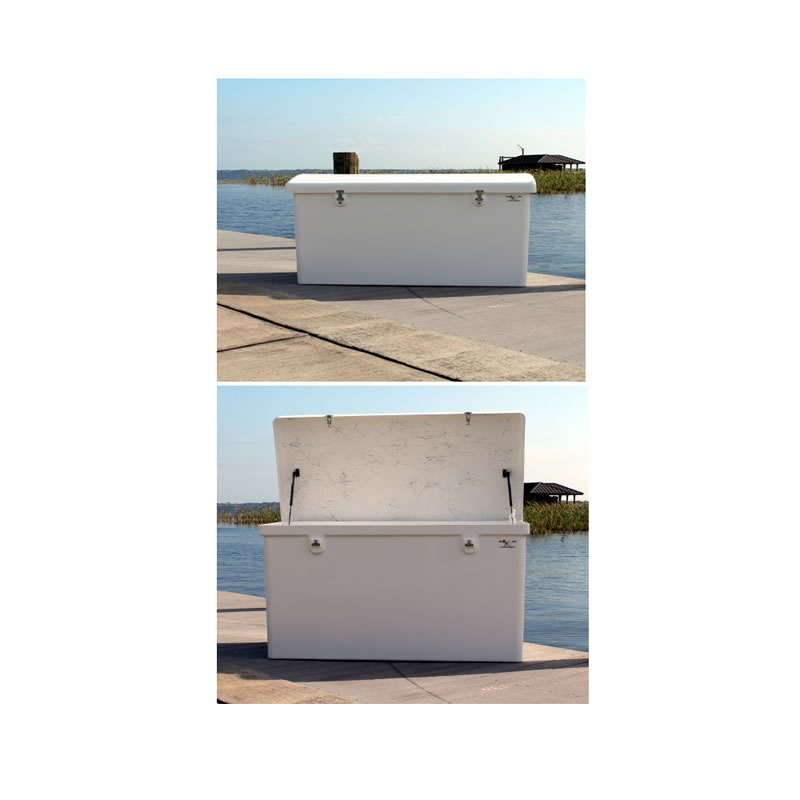

HP Compressor Dock Box by Nuvair

The Nuvair Dock Box uses our Standard Electric model compressors (MCH13 or MCH16) that is made from top quality materials: connecting rods from aluminum alloy, stainless steel intercoolers and aftercoolers that are more than four meters in length, and cylinders of special cast iron. The electric motor uses an aluminum housing to keep weight to a minimum, making the station very compact.

SKU
DOCKBOX

Features

  • Enclosed dock box containing high pressure (HP) compressor
  • 5000 psi (345 bar) maximum pressure
  • Grade E breathing air filtration
  • Two (2) Fill whips
  • Electric motor
  • Motor starter
  • Stainless steel intercoolers

Options

  • Motor starter with hour meter
  • Automatic condensate drains
  • Pressure switch
  • High temperature shutdown
  • Low oil shutdown
  • Interstage pressure gauges
  • Stainless steel frame
  • Visual CO/moisture indicator

Specifications

Model Dock Standard MCH13 Dock Standard MCH16
Fill Time* ~11 minutes ~9 minutes
Charging Rate* 8.4 SCFM (238 L/min) 11.3 SCFM (320 L/min)
CFM FAD 7 CFM (200 L/min) 9.4 CFM (266 L/min)
Motor Options Single & three-phase electric Three-phase electric
208-230 V / E1 / 50 or 60 Hz** 26 A
SKU 8020.1
N/A
208-230 V / E3 / 50 or 60 Hz** 17 A
SKU 8019.2
22 A
SKU 8022.2
380-415 V / E3 / 50 Hz 10 A
SKU 8019.6
15 A
SKU 8022.6
440-480 V / E3 / 60 Hz 10 A
SKU 8019.3
15 A
SKU 8022.3
Engine Power 5.5 hp (4 kW) 7.5 hp (5.5 kW)
Max Operating Pressure 5000 psi (345 bar) 5000 psi (345 bar)
RPM 1200 1450
Number of Stages 3 3
Number of Fill Hoses 2 2
Condensate Drain Manual Manual
Sound Level @ 3 Meters 81 dB 82 dB
Dimensions (L x W x H) 34 x 18 x 25 in (86 x 46 x 64 cm)
Weight 218 lb (99 kg)
Lubrication Splash Lubrication, capacity 1.8 L
Air Quality DIN 3188 - CGA Grade E - NFPA 1500 - EN12021

Model number is that of compressor inside the dock box.

*Fill time based on 80 cu ft cylinder from 500 to 3000 psi.

**Part number reflects 60 Hz models, inquire about 50 Hz models.
