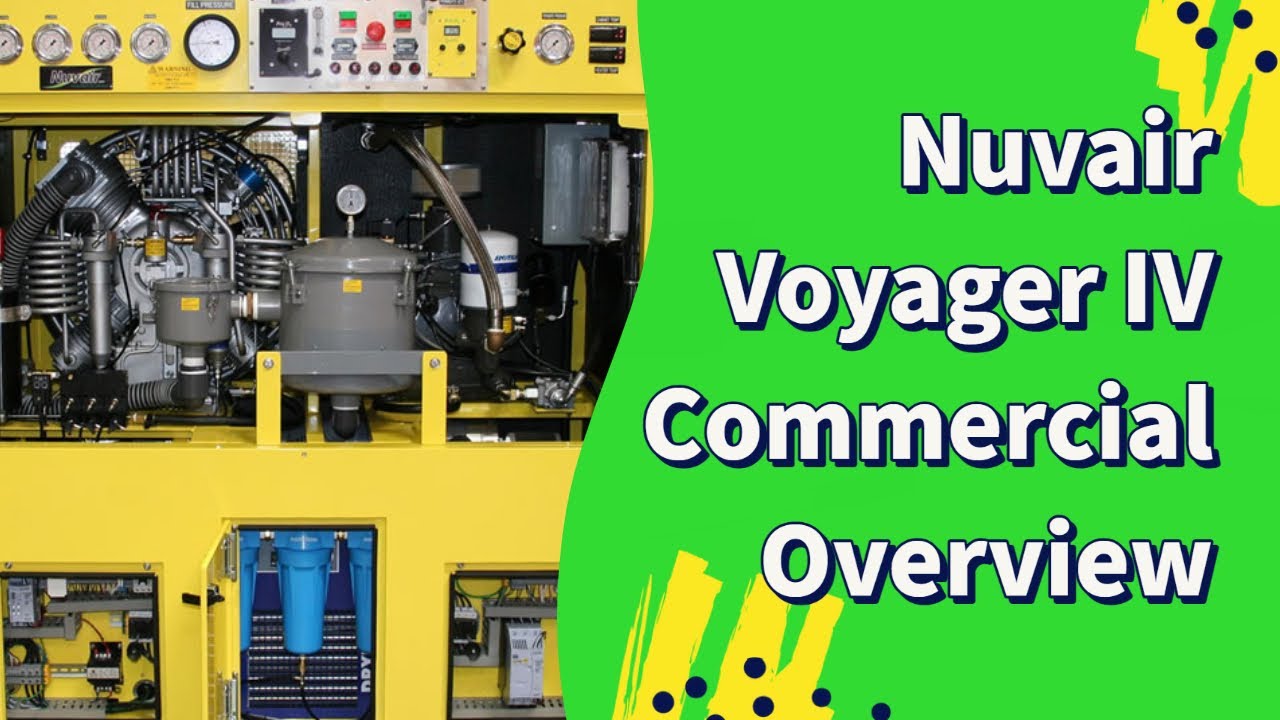

Voyager IV Commercial Nitrox Generator
SKU
7049-C
The Voyager IV Commercial compressor package integrates two compressors into an enclosed cabinet with large, easy-to-remove access doors for maintenance. The cabinet reduces compressor noise and offers a nice control panel on the front for easy operation. Using an EK76 LP compressor and Coltri HP compressor, we provide 22% to 40% enriched air nitrox at 9.3-17 CFM (263-481 L/min) FAD.
Features
- Large low pressure oil/air cooler with exhaust air fan
- Refrigerated air dryer for extended filter life
- Hankison low pressure filtration (four filters with a 1000-hour element life)
- Nuvair Membrane System
- Permeate and fill O2% analyzers with high and low alarms
- Pumps air up to 5000 psi (345 bar) and produces 22-40% nitrox (≤EANx40) at 3600 psi (250 bar)
- Interstage pressure gauges
- 90,000 cu ft high pressure filtration O2 compatible air or nitrox
- Digital cabinet temperature gauge
- Digital heater thermostat control
- Low pressure and high pressure hour meters
- High pressure dial-a-pressure shutdown
- High temperature shutdown
- Low oil shutdown
- Low pressure and high pressure automatic condensate drains
- Warning light system for all monitors built into the system
Advantages
- Complete state-of-the-art low pressure/high pressure (LP/HP) nitrox generating system
- Silenced and enclosed for cool and quiet operation
- Pumps air or nitrox
- Carbon dioxide (CO2) scrubber
- Electronic moisture monitoring with alarm and shutdown
- Multiple visual and audible alarms
Specifications
| Dimensions (L x W x H) | 35 x 62 x 68 in (89 x 158 x 173 cm) |
|
|---|---|---|
| Weight | 1550 lb (704 kg) | |
| 220 V / E1 / 50 Hz | 95 A SKU 7049.5-C | |
| 220 V / E3 / 60 Hz | 95 A SKU 7049.2-C | |
| 415 V / E3 / 50 Hz | 50 A SKU 7049.6-C | |
| 460 V / E3 / 60 Hz | 55 A SKU 7049.3-C | |
| High Pressure Pump | MCH36 | |
| Low Pressure Compressor ∙ Capacity @ 175 psi ∙ Pump |
|
|
| Horsepower ∙ Low Pressure Compressor ∙ High Pressure Compressor |
20 hp (15 kW) 15 hp (11 kW) |
|
| Volume Tank | 15 gal (57 L) | |
| Number of Stages | 4 | |
| HP Filtration | 90,000 cu ft | |
Analyzers
- Two (2) oxygen (O2) analyzers with alarm and shutdown
- Carbon monoxide (CO) analyzer with alarm and shutdown
- Carbon dioxide (CO2) analyzer with alarm and shutdown
- Moisture (H2O) analyzer with alarm and shutdown
