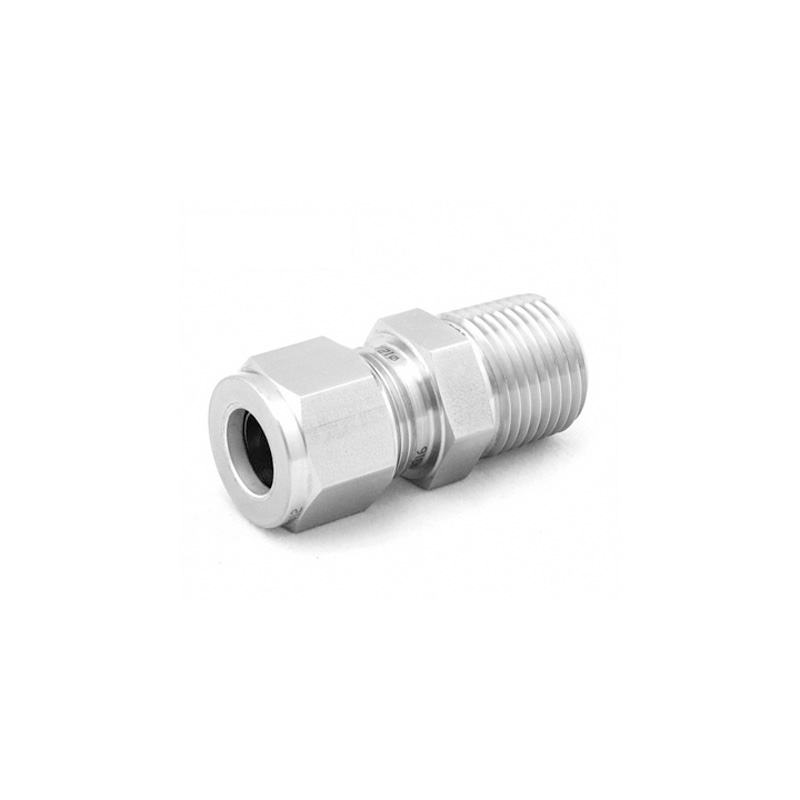

Straight Tube to Male Pipe Connector Stainless Series
Tube to male pipe connector. Connects fractional or metric tube to FNPT thread. Stainless steel 316. Various sizes available.
SKU
CM-316 Series
Specifications
| SKU | D Tube O.D. |
T* | d Min |
h | H | A | B | ℓ | L |
|---|---|---|---|---|---|---|---|---|---|
| 2CM2-316 | 1/8 (3.17) | 1/8 | 2.28 | 7/16 (11.11) | 7/16 (11.11) | 12.70 | 15.24 | 23.87 | 30.48 |
| 2CM4-316 | 1/8 (3.17) | 1/4 | 2.28 | 9/16 (14.28) | 7/16 (11.11) | 12.70 | 15.24 |
28.95 |
35.56 |
| 4CM2-316 | 1/4 (6.35) | 1/8 | 4.82 | 1/2 (12.70) | 9/16 (14.28) | 15.24 | 17.78 | 25.40 | 32.76 |
| 4CM4-316 | 1/4 (6.35) | 1/4 | 4.82 | 9/16 (14.28) | 9/16 (14.28) | 15.24 | 17.78 | 30.48 | 37.84 |
| 4CM6-316 | 1/4 (6.35) | 3/8 | 4.82 | 11/16 (17.46) | 9/16 (14.28) | 15.24 | 17.78 | 30.98 | 38.35 |
| 4CM8-316 | 1/4 (6.35) | 1/2 | 4.82 | 7/8 (22.22) | 9/16 (14.28) | 15.24 | 17.78 | 37.33 | 44.70 |
| 6CM2-316 | 3/8 (9.52) | 1/8 | 4.82 | 5/8 (15.87) | 11/16 (17.46) | 16.76 | 19.30 | 27.94 | 35.30 |
| 6CM4-316 | 3/8 (9.52) | 1/4 | 7.11 | 5/8 (15.87) | 11/16 (17.46) | 16.76 | 19.30 | 32.51 | 39.87 |
| 6CM6-316 | 3/8 (9.52) | 3/8 | 7.11 | 11/16 (17.46) | 11/16 (17.46) | 16.76 | 19.30 | 32.51 | 39.87 |
| 6CM8-316 | 3/8 (9.52) | 1/2 | 7.11 | 7/8 (22.22) | 11/16 (17.46) | 16.76 | 19.30 | 38.86 | 46.22 |
| 8CM4-316 | 1/2 (12.70) | 1/4 | 7.11 | 13/16 (20.63) | 7/8 (22.22) | 22.86 | 21.84 | 33.27 | 43.43 |
| 8CM6-316 | 1/2 (12.70) | 3/8 | 9.65 | 13/16 (20.63) | 7/8 (22.22) | 22.86 | 21.84 | 33.27 | 13.43 |
| 8CM8-316 | 1/2 (12.70) | 1/2 | 10.41 | 7/8 (22.22) | 7/8 (22.22) | 22.86 | 21.84 | 38.86 | 49.02 |
| 12CM8-316 | 3/4 (19.05) | 1/2 | 11.93 | 1-1/16 (26.98) | 1-1/8 (28.57) | 24.38 | 21.84 | 40.38 | 50.54 |
| 12CM12-316 | 3/4 (19.05) | 3/4 | 15.74 | 1-1/16 (26.98) | 1-1/8 (28.57) | 24.38 | 21.84 | 40.38 | 50.54 |
| 6CM2-316ME | 6 | 1/8 | 4.8 | 14 | 14 | 15.3 | 17.7 | 25.4 | 32.8 |
| 6CM4-316ME | 6 | 1/4 | 4.8 | 14 | 14 | 15.3 | 17.7 | 30.5 | 37.9 |
| 8CM4-316ME | 8 | 1/4 | 6.3 | 14 | 16 | 16.2 | 18.6 | 31.2 | 38.7 |
