Tube x MNPT Bulkhead Connector Series

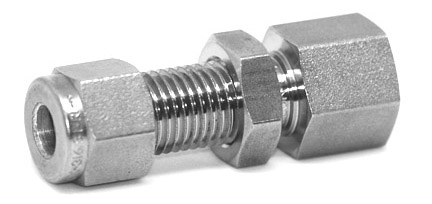

Stainless steel bulkhead male connector connects fractional tube to Female NPT thread. All bulkhead fittings come with nuts.
SKU
Specifications
SKU | D Tube O.D. |
T NPT Size |
d (Min.) |
h* | h1* | H* |
A |
ℓ (mm) |
ℓ1 (mm) |
L (mm) |
L1 (mm) |
Panel Hole Drill Size |
Panel Max Thickness |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4BCM4-316 | 1/4 (6.35mm) | 1/4 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 45.97 | 26.16 | 53.34 | 66.52 | 11.50 | 10.16 |
*Width Across Flat (in) measurement.
