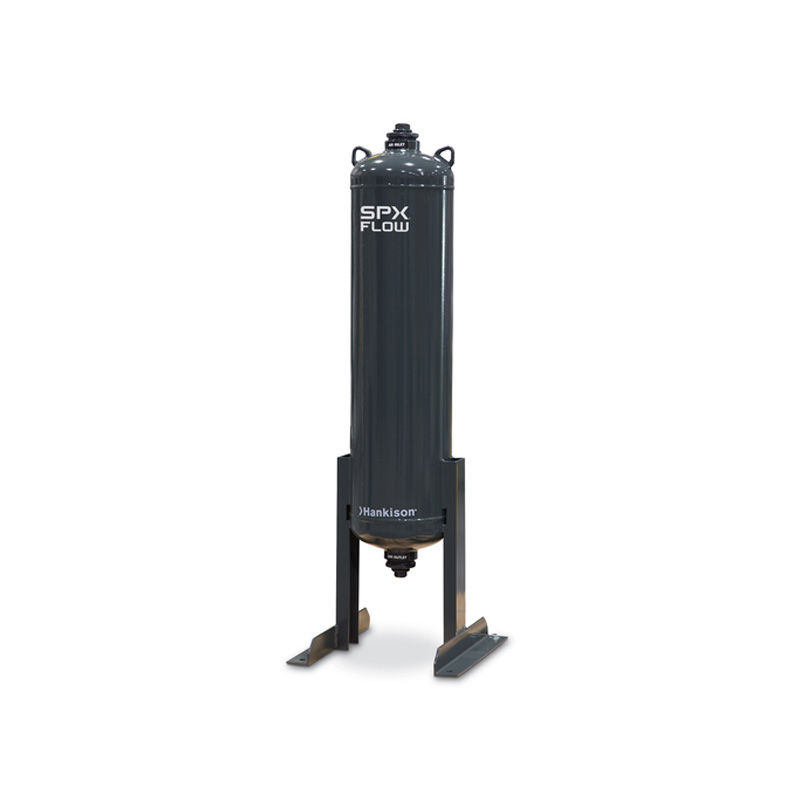

SPX Hankison Activated Alumina Adsorber Towers

Activated Alumina Adsorber Towers (AAAT) from SPX Flow® Hankison® help protect downstream equipment with single tower adsorbers that deliver a stable -40°F (-40°C) pressure dew point. Available in 17 model sizes with flow ratings ranging from 40 to 3920 SCFM.

yes

Specifications

SKU Model Size Flow Rating
(SCFM)
Connection
(in)
Design Pressure
(psi)
Design Temp
(°F)
Height
(in)
Width
(in)
Depth
(in)
Weight
(lb)
AT-4-AA-0 4 40 1-1/2 NPT 250 120 70 10 24 79
AT-5-AA-0 5 60 3/4 NPT 250 120 72 11 24 103
AT-6-AA-0 6 90 1 NPT 250 120 78 15 16 197
AT-8-AA-0 8 160 1-1/2 NPT 250 120 61 17 18 185
AT-10-AA-0 10 210 1-1/2 NPT 200 120 64 20 20 249
AT-12-AA-0 12 290 2 NPT 200 120 65 22 22 336
AT-14-AA-0 14 360 3 FLG 200 120 69 25 25 433
AT-16-AA-0 16 420 3 FLG 200 120 71 27 27 522
AT-18-AA-0 18 610 4 FLG 200 120 72 29 29 612
AT-20-AA-0 20 770 4 FLG 200 120 73 31 31 788
AT-22-AA-0 22 930 4 FLG 200 120 73 33 33 885
AT-24-AA-0 24 1130 4 FLG 180 120 74 35 35 1015
AT-26-AA-0 26 1370 4 FLG 200 120 80 37 37 1479
AT-30-AA-0 30 1940 4 FLG 200 120 79 42 42 1729
AT-36-AA-0 36 2780 6 FLG 200 120 83 48 50 2488
AT-42-AA-0 42 3920 6 FLG 180 120 74 55 54 3486

Please contact the sales team for estimated lead times.

Hankison Genuine Parts

Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.
