SAE / MS Male Elbow Adjustable Series
SKU
LMS-316 Series

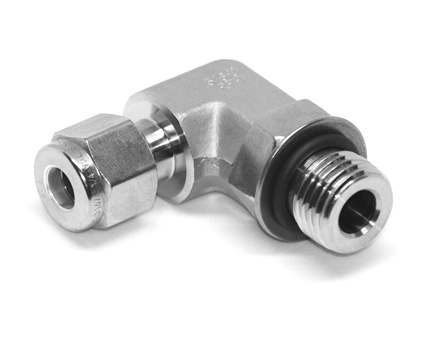

Stainless steel positionable elbow connects fractional tube to SAE/MS straight thread Boss.
Specifications
| SKU | D Tube O.D. |
T (U) Straight Thread |
d (Min.) |
h* | H* |
H1* |
A |
B (mm) |
ℓ (mm) |
ℓ1 (mm) |
L (mm) |
L1 (mm) |
K (mm) |
O-Ring Uniform Size Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4LMS6-316 | 1/4 (6.35mm) | 9/16 – 18 | 4.82 | 5/8 | 9/16 | 11/16 | 15.24 | 17.78 | 23.11 | 11.17 | 30.48 | 32.25 | 20.06 | -906 |
*Width Across Flat (in) measurement.
